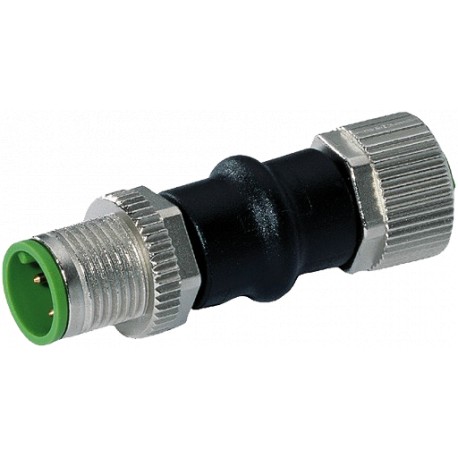

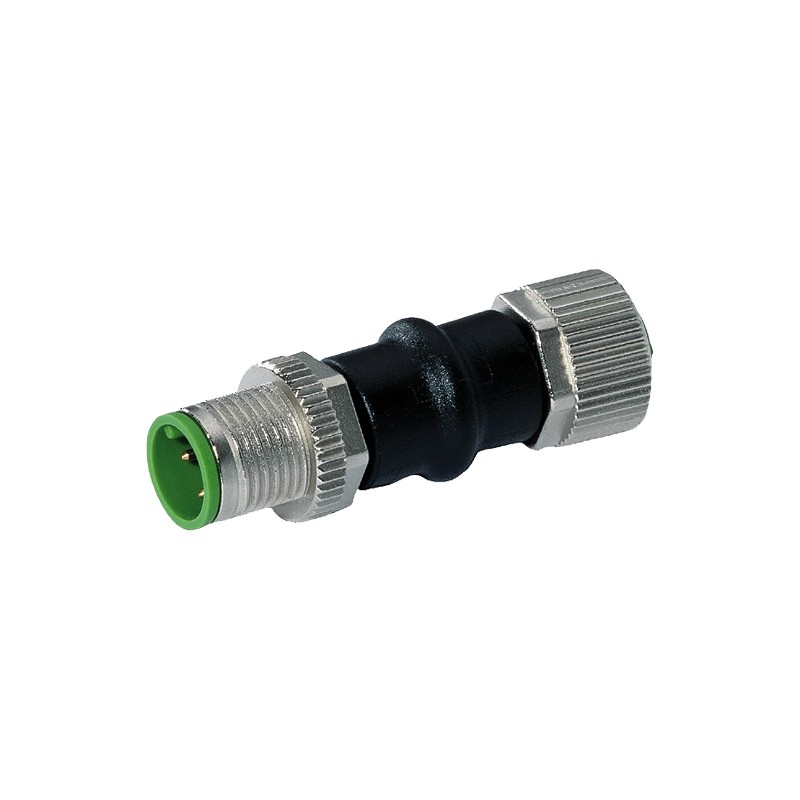

7000-15051-0000000 MURRELEKTRONIK M12-M12 Adaptor for CUBE67+
7000-15051-0000000
MURRELEKTRONIK
M12-M12 Adaptor for CUBE67+
M12-M12 ADAPTER FOR CUBE67+ For external actor power
M12-M12 ADAPTER FOR CUBE67+
Connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Cube67
Adapter
Male - female
M12 – M12, 6-pole
2-pole used
Actuator supply external
Adapter
Male - female
M12 – M12, 6-pole
2-pole used
Actuator supply external
Form
| Form | 15051 |
|---|
Technical Data
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V AC/DC |
| Rated surge voltage | 0.8 kV |
| Operating current per contact | max. 4 A |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| Material | PUR |
| Locking material | Zinc die casting, matte nickel plated |
General data
| Temperature range | -25...+85 °C |
|---|---|
| Test isolation voltage | 0.8 kV eff/rms |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879419086 |
| eClass | 27061801 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-15051-0000000 7000-15051-0000000 EN_7000-15051-0000000.pdf | 100 Kbytes |
|
| Download general catalog |
|
