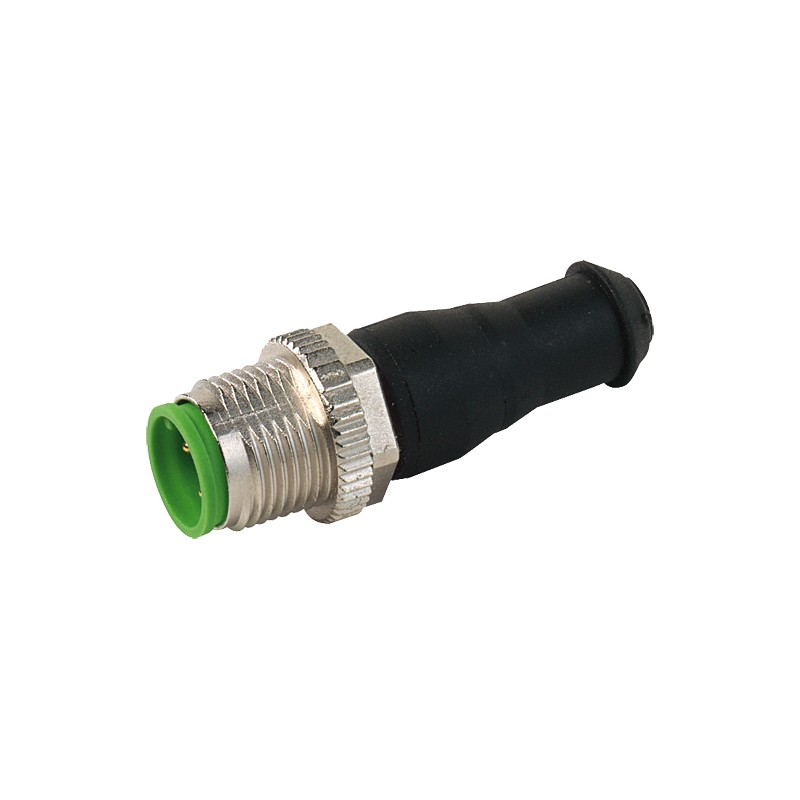

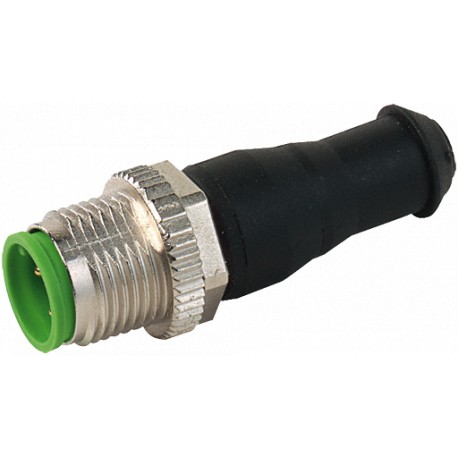

7000-15041-0000000 MURRELEKTRONIK M12 bus terminating plug for CUBE67
7000-15041-0000000
MURRELEKTRONIK
M12 bus terminating plug for CUBE67
Bus terminating plug M12 male A-cod.CUBE67
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-15041-0000000 |
| Weight: | 0.012 kg |
Terminating resistor
Male
M12, 6-pole
A-coded
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 15041 |
|---|
| Operating voltage | max. 30 V DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V DC |
| Operating current per contact | max. 4 A |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| Temperature range | -25...+85 °C |
|---|
| country of origin | DE |
|---|---|
| customs tariff number | 85332100 |
| EAN | 4048879196963 |
| eClass | 19070403 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-15041-0000000 7000-15041-0000000 7000-15041-0000000_Data_Sheet_1.pdf | 136 Kbytes |
|
| Download general catalog |
|
