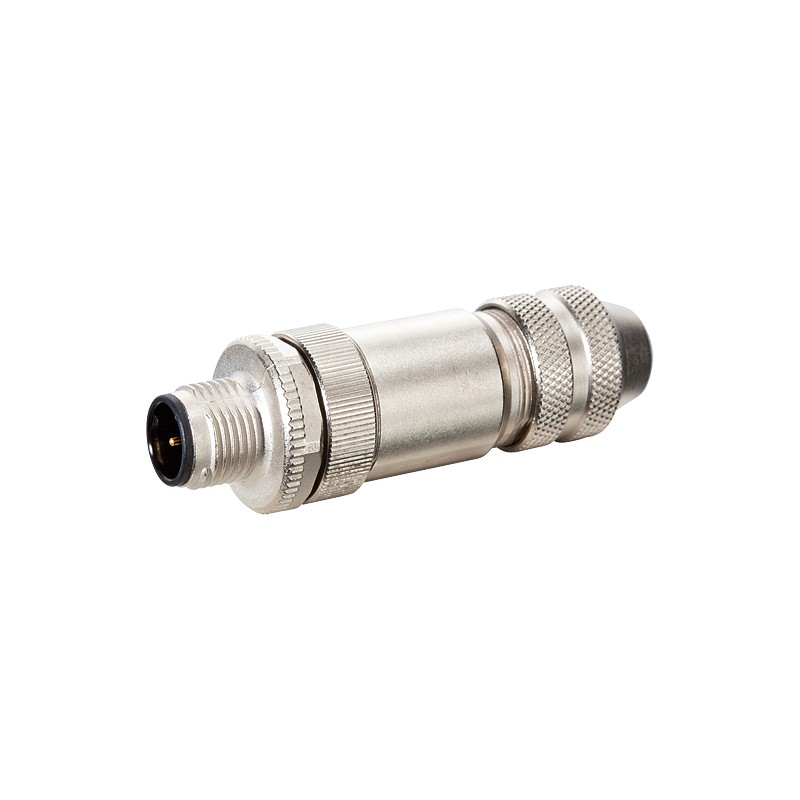

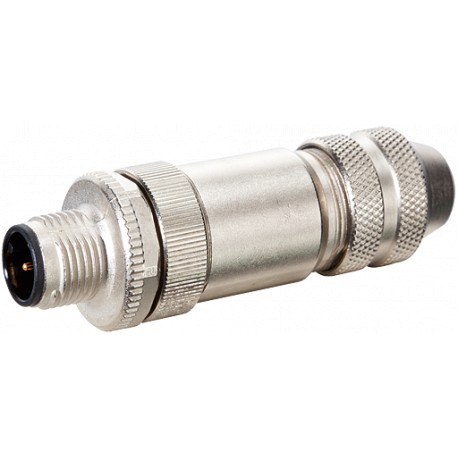

7000-14591-0000000 MURRELEKTRONIK M12 male D-coded 0º self-wireable screw terminals
7000-14591-0000000
MURRELEKTRONIK
M12 male D-coded 0º self-wireable screw terminals
M12 male 0° D-cod. screw terminal4-pol., max. 0,75mm², 6 - 8mm, shielded
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-14591-0000000 |
| Weight: | 0.042 kg |
Male straight
M12, 4-pole
D-coded
shielded
Screw terminals
Sealing range (cable Ø): 6...8 mm
| Form | 14591 |
|---|
| Operating voltage | max. 250 V AC/DC |
|---|---|
| Operating current per contact | max. 4 A |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Coding | M12, D-coded |
| Connection cross section | max. 0.75 mm² |
| Sealing range (cable Ø) | 6...8 mm |
| Protection | IP67 inserted and tightened (EN 60529) |
| Locking material | Zinc die casting, matte nickel plated |
| Temperature range | -40...+85 °C |
|---|
| country of origin | DE |
|---|---|
| customs tariff number | 85369010 |
| EAN | 4048879536639 |
| eClass | 27279221 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-14591-0000000 7000-14591-0000000 7000-14591-0000000_Data_Sheet_1.pdf | 110 Kbytes |
|
| Download general catalog |
|
