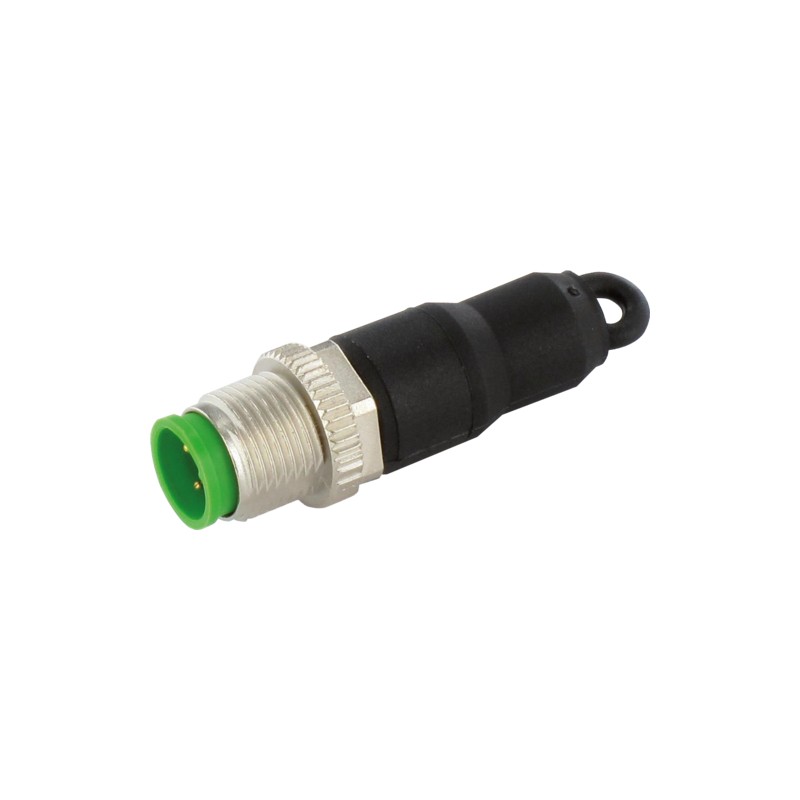

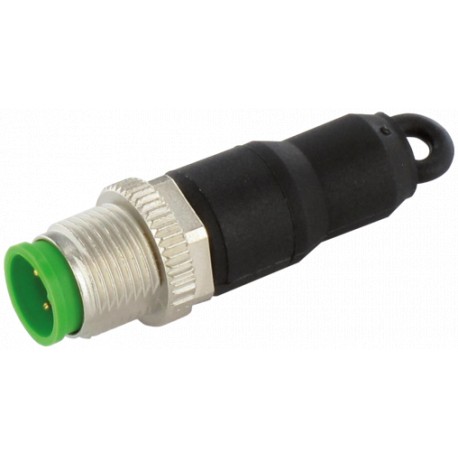

7000-13482-0000000 MURRELEKTRONIK M12 male 0° CODING PLUG JUMPER 1-3
7000-13482-0000000
MURRELEKTRONIK
M12 male 0° CODING PLUG JUMPER 1-3
M12 MALE 0° CODING PLUG JUMPER 1-3
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-13482-0000000 |
| Weight: | 0.009 kg |
| Country of origin: | DE |
Technical Data
| Mounting method | inserted, screwed |
|---|---|
| Family construction form | M12 |
| Coding | A |
| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
| Operating voltage AC max. | 30 V |
|---|---|
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 4 A |
| Tightening torque | 0,6 Nm |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
| Coating locking | Nickeled |
|---|---|
| Locking material | Zinc die-casting |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-13482-0000000 7000-13482-0000000 7000-13482-0000000_Data_Sheet_1.pdf | 127 Kbytes |
|
| Download general catalog |
|
