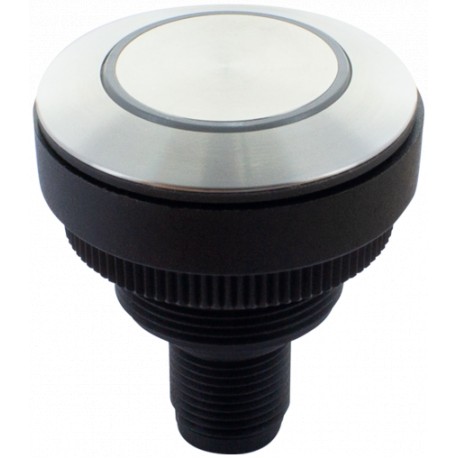

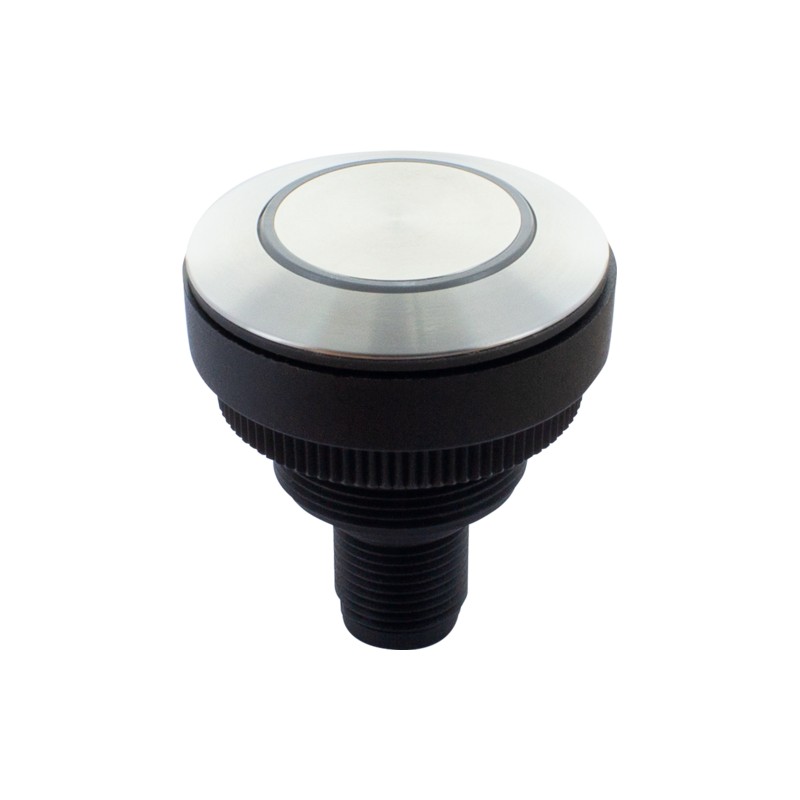

69111 MURRELEKTRONIK R-Button 30 DS 1NO L M12(4)Illuminiated reset button
69111
MURRELEKTRONIK
R-Button 30 DS 1NO L M12(4)Illuminiated reset button
R-Button 30 DS 1NO L M12(4)
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Illuminiated reset button
Frontring and cover stainless steel
Mounting hole 30,3 mm
Connection M12 (4-pin)
| UL Enclosure Type Rating (Front side) | type 4X |
|---|---|
| Mechanical endurance | 500000 |
| Mechanical endurance B10 | 650000 |
| Short-circuit current | 1000 A |
|---|---|
| Kind of short circuit protective device | fuse 250 V / 0.1 A / 1.5 kA gG quick |
| Switching current | 0,01...100 mA |
| Rated voltage UL 60947 | ≤ 30 V DC (42,4 V peak) |
| Switching voltage | 0,02...35 V |
| Operating voltage of the luminous element | 20...28 V |
| Power rating (voltage dependent) | 1 W |
| Rated surge voltage | 800 V |
| Rated insulation voltage | 250 V |
| Salt-spray resistance | IEC 60068-2-11 |
|---|---|
| Installation height max. (ASL) | ≤ 2000 m |
| Relative humidity | ≤ 93% @ 40 °C |
| storage temperature | -40...85 °C |
| operating temperature | -25...70 °C |
| Grid min. | 35 mm |
|---|---|
| Mounting hole | 30,3 mm |
| Mounting depth | 36,4 mm |
| Dimensions H×W×D | 34,5 x 40 mm |
| Terminal | M12, 4-pole, A-coded |
| Fixing | Threaded ring |
| Contact material | Gold |
| Contact function | 1 S |
| Operating travel | ≤ 1 mm |
| Actuating force | 5 ... 12 N |
| Housing | Plastic |
| Product article number of manufacturer | 69111 |
|---|
| Degree of protection (IP, EN 60529, front side) | IP66, IP67, IP69 |
|---|---|
| Degree of protection (IP, EN 60529, rear side) | IP66, IP67 |
| Rated operating current Ie | 0,1 A |
|---|---|
| Rated operating voltage (AC-15) | 35 V |
| Rated operating voltage (DC-13) | 35 V |
| Installation height | 3,9 mm |
|---|
| Can be illuminated | yes |
|---|---|
| Collar shape | round |
| Color | black |
| Bezel color | Stainless steel |
| Collar color | black |
| Color of illuminant | white |
| Color of front ring | Stainless steel |
| Actuating function | momentary contact function |
| Type of the lamps | LED |
