MURRELEKTRONIK57001 MURRELEKTRONIK Murrelektronik-nexogate cloud interface EIP Data connection between machine/controller ..

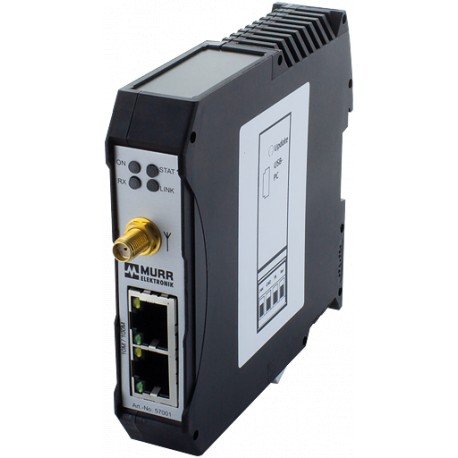

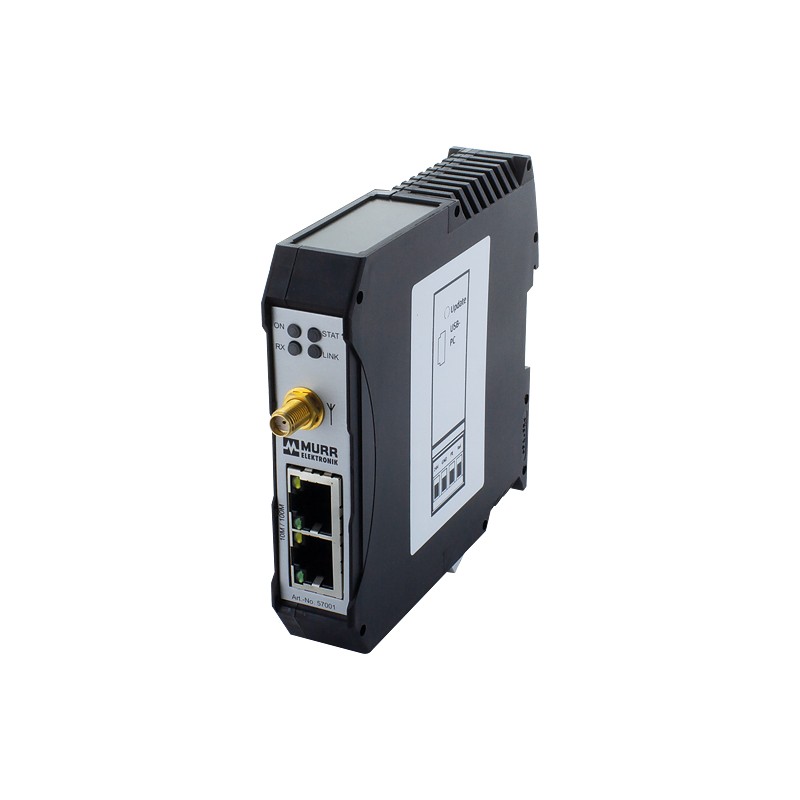

MURRELEKTRONIK 57001 57001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

57001 MURRELEKTRONIK Murrelektronik-nexogate cloud interface EIP Data connection between machine/controller ..

Reference: 57001

Manufacturer: MURRELEKTRONIK

Description:

Murrelektronik-nexogate cloud interface EIP Data connection between machine/controller and cloud
Murrelektronik-nexogate cloud interface EIP

Categories:

  • MURRELEKTRONIK

Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

EtherNet/IP
100 Mbit/s
Connection cables are in the online shop under "Connection Technology".
Technical Data
Operating voltage9...33 V DC
Current consumptionmax. 200 mA
General data
Standardsapproved in: AT, BE, BG, CH, CY, CZ, DE, DK, EE, EL, ES, FI, FR, GB, HR, HU, IE, IS, IT, JP, LI, LT, LU, LV, MT, NL, NO, PL, PT, RO, SE, SI, SK
ProtectionIP20
Dimensions H×W×D100×22×115 mm
Mounting methodDIN-rail mountable TH35 (EN 60715)
Temperature range-20...+60 °C (storage temperature -40...+75 °C)
Material (housing)Black plastic
Connections
FieldbusEtherNet/IP 10/100 Mbit/s; 2× RJ45 (female)
SupplyScrew terminals
Wireless technology
Cellular standard3G
Frequency2G 850 MHz/900 MHz/1800 MHz/1900 MHz; UMTS B1, B2, B5, B6, B8, B19
Antenna connectionSMA (50 Ω)
Commercial data
country of originDE
customs tariff number85176200
EAN4048879875622
eClass27249200
Packaging unit1
