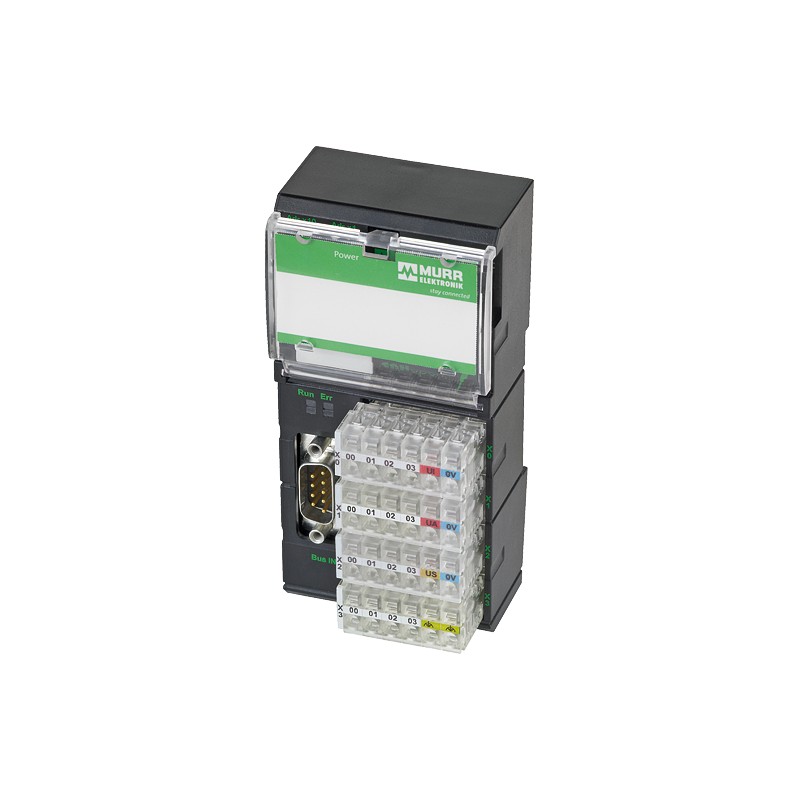

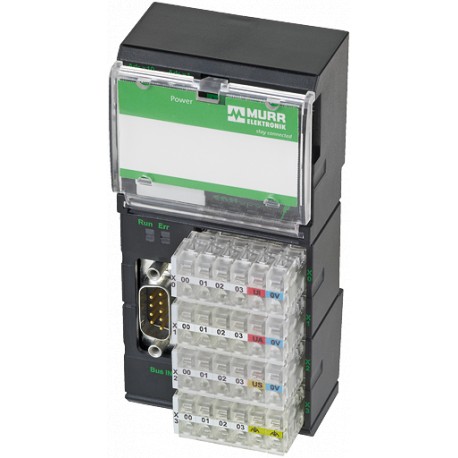

56906 MURRELEKTRONIK IMPACT20 CANOPEN, DIGITAL OUTPUT MODULE
56906
MURRELEKTRONIK
IMPACT20 CANOPEN, DIGITAL OUTPUT MODULE
IMPACT20 CANOPEN, DIGITAL OUTPUT MODULE 16 digital outputs
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 56906 |
| Weight: | 0.19 kg |
DO16 - 0.5 A
Connection cables are in the online shop under "Connection Technology". Housing fully potted.
| Fieldbus | CAN 1 Mbit/s; SUB-D9 |
|---|---|
| Sensor-system/actuator supply | 6 × spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A) |
| I/O ports | 18 × spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A) |
| Operating voltage | 24 V DC (EN 61131-2) |
|---|
| Addressing | Rotary switch 1...99 |
|---|
| Protection | IP20 |
|---|---|
| Mounting method | DIN-rail mountable (EN 60715) |
| Temperature range | 0...+55 °C (storage temperature -20...+70 °C) |
| Dimensions H × W × D | 117×56×47 mm |
| Switching current per output | max. 0.5 A (short-circuit and overload protected) |
|---|---|
| Total current | max. 8 A |
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
| country of origin | DE |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879048057 |
| eClass | 27242604 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 56906 56906 56906_Data_Sheet_1.pdf | 161 Kbytes |
|
