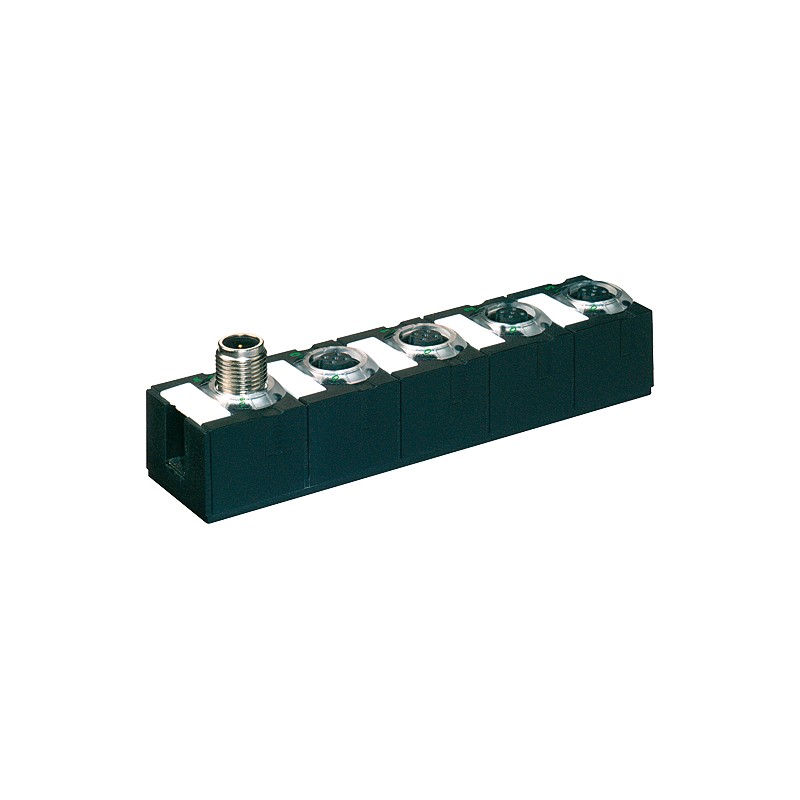

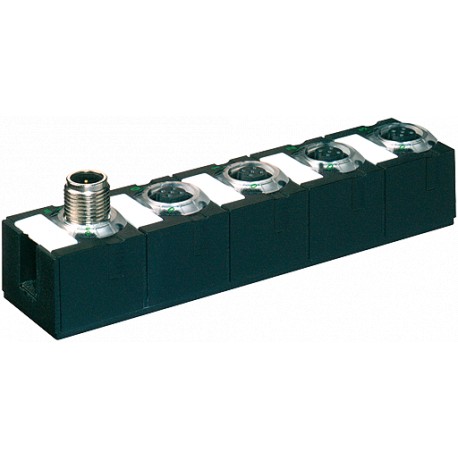

5674050 MURRELEKTRONIK CUBE67 I/O COMPACT MODULE 4 analog inputs
Reference: 5674050
Manufacturer: MURRELEKTRONIK
Description:
CUBE67 I/O COMPACT MODULE 4 analog inputs
Categories:
- MURRELEKTRONIK > BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
4 analog inputs
| Art.No.: | 5674050 |
| Weight: | 0.16 kg |
Compact module
AI4 - (C) 4×M12 (RTD)
for resistors and temperature
Metal parts: Stainless steel
Connection cables are in the online shop under "Connection Technology". Housing fully potted.
AI4 - (C) 4×M12 (RTD)
for resistors and temperature
Metal parts: Stainless steel
Connection cables are in the online shop under "Connection Technology". Housing fully potted.
Input
| Sensor type | Pt100, 200, 500, 1000; Ni100, 120, 200, 500, 1000; R 0...3000 Ω |
|---|---|
| Conversion time (analog) | approx. 58 ms per channel |
| Resolution (analog) | 15 Bit + sign |
| Accuracy | max. ±0.5% (of range limit) |
| Accuracy (Ni) | max. ±1% (of range limit) |
| Connection | 2-, 3-, 4-wire technology |
Internal communication
| Current consumption | max. 50 mA |
|---|---|
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
Connections
| Fieldbus | via internal system connection |
|---|---|
| Sensor-system/actuator supply | via internal system connection (max. 2×4 A) |
| I/O ports | M12 (female) 5-pole, A-coded |
General data
| Protection | IP67 |
|---|---|
| Mounting method | 2-hole screw mounting |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| Dimensions H × W × D | 126×30×34.5 mm |
Diagnostic
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
| Actuator warning | per channel via LED and BUS |
| Wire break upper/lower limit overload | per channel via LED and BUS |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879044790 |
| eClass | 27242601 |
| Packaging unit | 1 |
