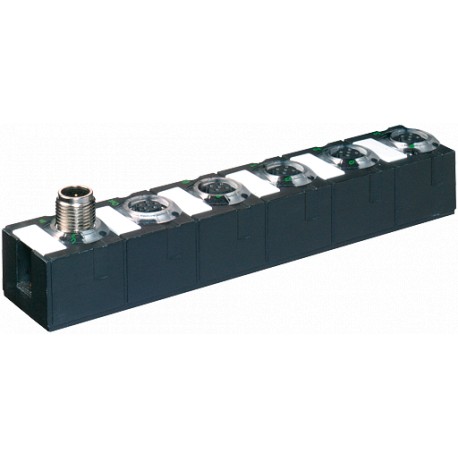

56731 MURRELEKTRONIK CUBE67 I/O EXTENSION MODULE 4 analog inputs (I)
56731
MURRELEKTRONIK
CUBE67 I/O EXTENSION MODULE 4 analog inputs (I)
CUBE67 I/O EXTENSION MODULE
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲AI4 - (E) 4× M12 (I)
Current
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
| Protection | IP67 |
|---|---|
| Mounting method | 2-hole screw mounting |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| Dimensions H×W×D | 150×30×34.5 mm |
| Conversion time (analog) | approx. 2 ms (per channel) |
|---|---|
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
| Resolution (analog) | 15 Bit |
| Accuracy | max. ±0.5% (of range limit) |
| Current consumption | max. 50 mA |
|---|---|
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
| Load | approx. 300 Ω, differential input |
|---|---|
| Input range | 0...20 mA, 4...20 mA |
| Fieldbus | via internal system connection |
|---|---|
| Sensor-system/actuator supply | via internal system connection (max. 2× 4 A) |
| I/O ports | M12 (female) 5-pole, A-coded |
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
| Actuator warning | per channel via LED and BUS |
| Wire break upper/lower limit overload | per channel via LED and BUS |
| country of origin | DE |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879288057 |
| eClass | 27242601 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 56731 56731 EN_56731.pdf | 146 Kbytes |
|
