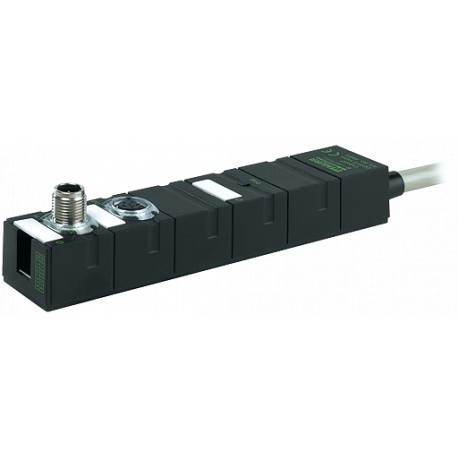

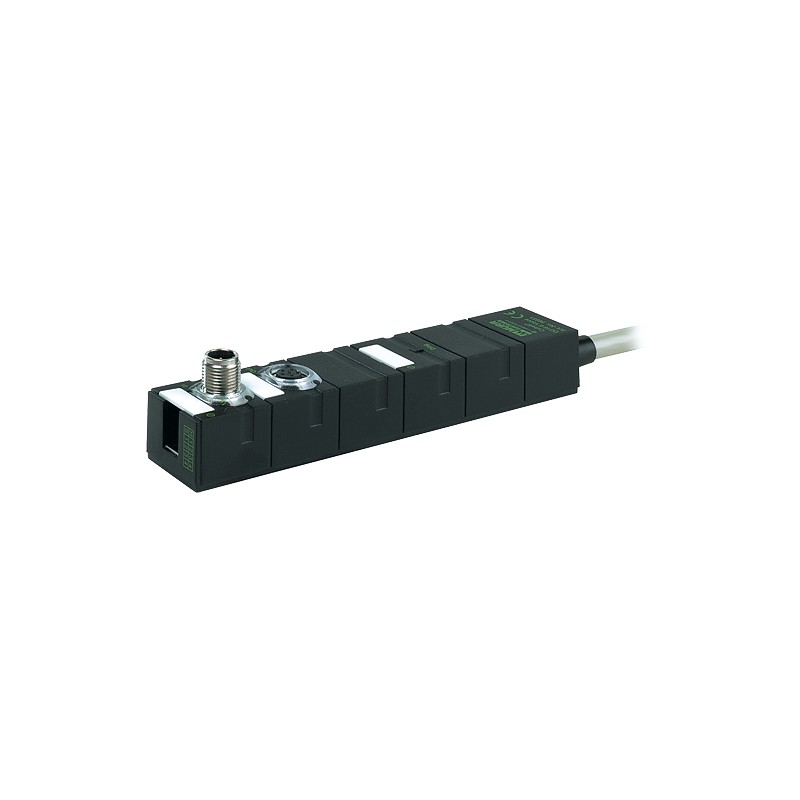

5666500 MURRELEKTRONIK Cube67 I/O Cable Extension Module DIO8, M12 Euchner Sensor, M12 8 pol., 1,5m
5666500
MURRELEKTRONIK
Cube67 I/O Cable Extension Module DIO8, M12 Euchner Sensor, M12 8 pol., 1,5m
Cube67 I/O Cable-Module, I/O Extension ModuleDIO8, M12 Euchner Sensor, M12 8 pol., 0,2m
Cube67 I/O Cable-Module, I/O Extension Module
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲DIO8 - (E) 0.2 m (M12)
for EUCHNER ID Sensor
Digital inputs/outputs (multifunctional)
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
| Protection | IP67 |
|---|---|
| Mounting method | 2-hole screw mounting |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| Dimensions H×W×D | 150×30×34.5 mm |
| Actuator supply UA | 24 V DC (EN 61131-2), via system connection (max. 4 A) |
|---|---|
| Switching current per output | EUCHNER Type CIT 3PL1M30-STR |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA |
|---|---|
| Type | EUCHNER Type CIT 3PL1M30-STR |
| Input filter | 1 ms |
| No./diameter of wires | 8× 0.25 mm² |
|---|---|
| Material (jacket) | PUR |
| Cable Length | 0.2 m |
| Current consumption | max. 30 mA |
|---|---|
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
| I/O channels | Input/Output |
|---|
| Fieldbus | via internal system connection |
|---|---|
| Sensor-system/actuator supply | via internal system connection (max. 2× 4 A) |
| I/O ports | M12 (male) 5-pole, A-coded |
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
| Actuator warning | per channel via BUS |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879044882 |
| eClass | 27242604 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 5666500 5666500 EN_5666500.pdf | 133 Kbytes |
|
| Download general catalog |
|
