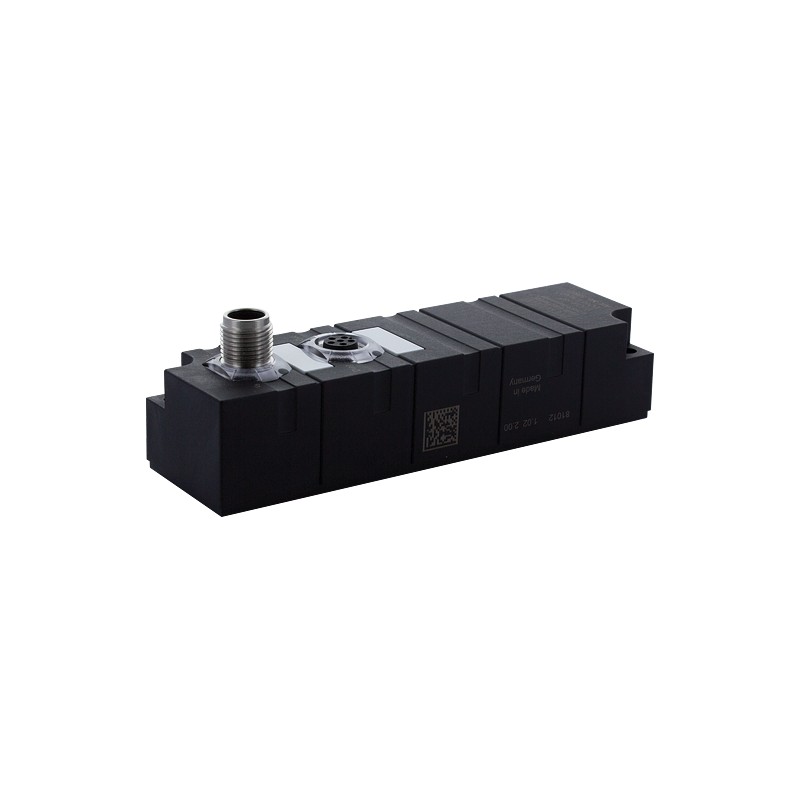

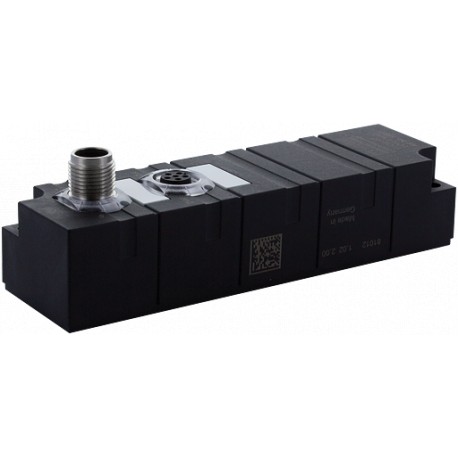

56657 MURRELEKTRONIK Cube67 Valve-Interface, I/O Extension Module DO32, MAC Valves, D-Sub HD44F 44 pol.,
56657
MURRELEKTRONIK
Cube67 Valve-Interface, I/O Extension Module DO32, MAC Valves, D-Sub HD44F 44 pol.,
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 56657 |
| Weight: | 0.185 kg |
Cube67 DO32 E - Valve
Multipole plug (0.5 A)
MAC - SUB-D44
Connection cables are in the online shop under "Connection Technology". Housing fully potted.
| Current consumption | max. 50 mA |
|---|---|
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
| Fieldbus | via internal system connection |
|---|---|
| Sensor-system/actuator supply | via internal system connection (max. 2×4 A) |
| I/O ports | MAC - SUB-D44 |
| Protection | IP67 |
|---|---|
| Mounting method | 2-hole screw mounting |
| Temperature range | 0...+55 °C (storage temperature -20...+70 °C) |
| Dimensions H × W × D | 124×36×39.5 mm |
| Actuator supply UA | 24 V DC (EN 61131-2) |
|---|---|
| Switching current per output | max. 0.5 A (short-circuit and overload protected) |
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
| Actuator warning | per channel via BUS |
| country of origin | DE |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879048361 |
| eClass | 27242604 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 56657 56657 56657_Data_Sheet_1.pdf | 140 Kbytes |
|
| Download general catalog |
|
