56627
MURRELEKTRONIK
1
Available Ship on today

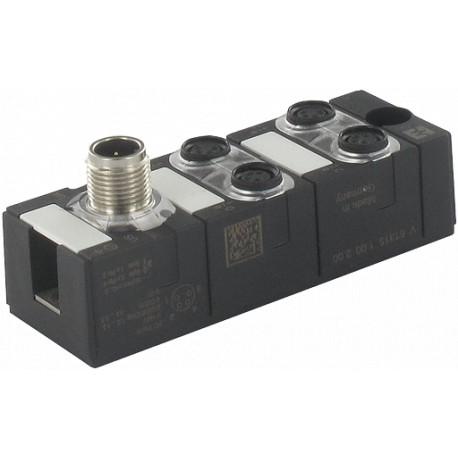

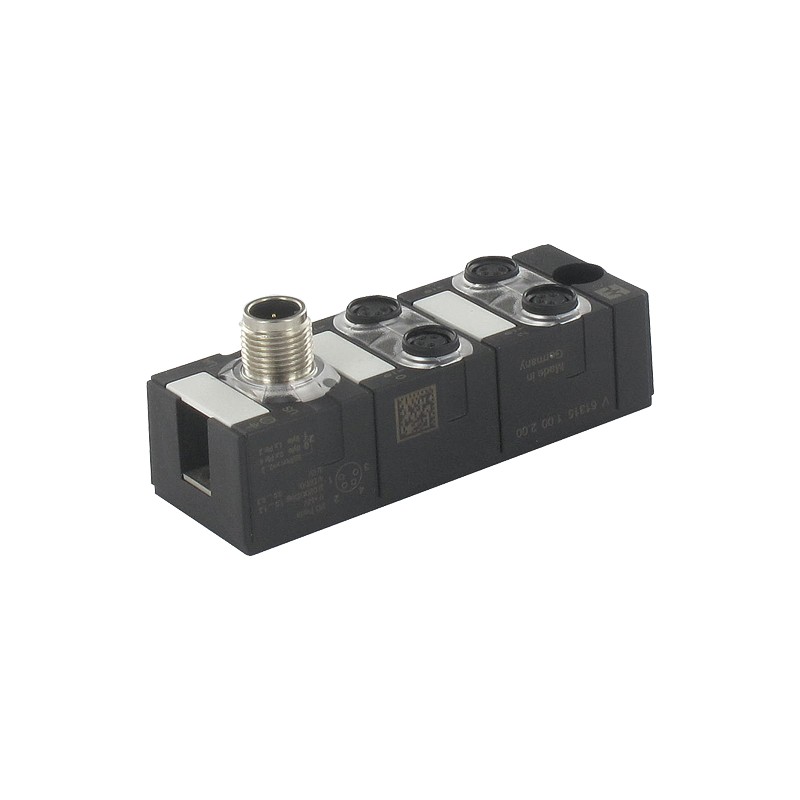

CUBE67 I/O COMPACT MODULE 8 multifunction channels Cube67 DIO8 C 4xM8 4-pole
BUS systems
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Art.No.: | 56627 |
Weight: | 0.095 kg |
Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M8 female), short-circuit and overload protected |
---|---|
Type | for 3-wire sensors or mechanical switches, PNP |
Input filter | 1 ms |
Current consumption | max. 30 mA |
---|---|
LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
Fieldbus | via internal system connection |
---|---|
Sensor-system/actuator supply | via internal system connection (max. 2×4 A) |
I/O ports | M8 (female) 4-pole, A-coded |
Protection | IP67 |
---|---|
Mounting method | 2-hole screw mounting |
Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
Dimensions H × W × D | 85×30×34.5 mm |
Actuator supply UA | 24 V DC (EN 61131-2), via system connection (max. 4 A) |
---|---|
Switching current per output | max. 0.5 A (short-circuit and overload protected) |
Lamp load | 10 W |
PIN 4 | Input/Output |
---|---|
PIN 2 | Input/Output/Diagnostic |
Communication status | via LED |
---|---|
Diagnostic via LED | per module and channel |
Diagnostic via BUS | per module and channel |
Monitoring - under voltage | yes |
Monitoring - no voltage | yes |
Short-circuit and overload | yes |
Actuator warning | per channel via LED and BUS |
country of origin | DE |
---|---|
customs tariff number | 85389099 |
EAN | 4048879579636 |
eClass | 27242604 |
Packaging unit | 1 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes | |
56627 56627 56627_Data_Sheet_1.pdf | 217 Kbytes | |
Download general catalog |
