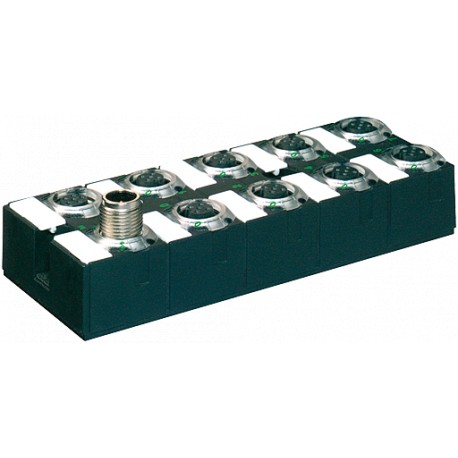

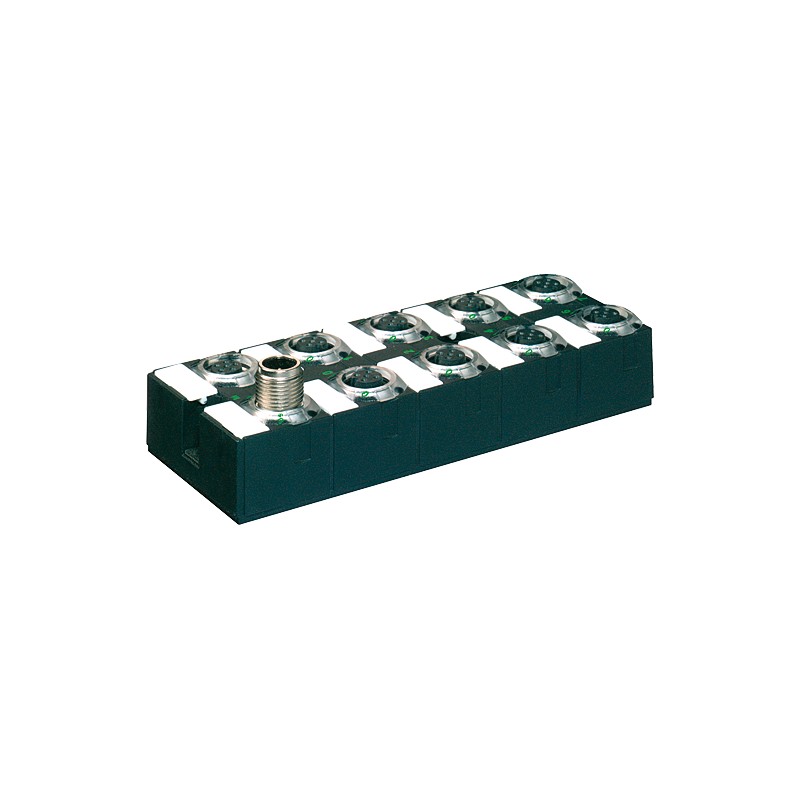

56606 MURRELEKTRONIK CUBE67 I/O EXTENSION MODULE 16 digital NPN inputs
56606
MURRELEKTRONIK
CUBE67 I/O EXTENSION MODULE 16 digital NPN inputs
CUBE67 I/O EXTENSION MODULE
BUS systems
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
More info
▲Expansion module
DI16 (E) NPN - 8× M12
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
DI16 (E) NPN - 8× M12
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
General data
| Protection | IP67 |
|---|---|
| Mounting method | 2-hole screw mounting |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| Dimensions H×W×D | 126×50×34.5 mm |
Input
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
|---|---|
| Type | for 3-wire sensors or mechanical switches, NPN, (EN 61131-2) |
| Input filter | 1 ms |
Internal communication
| Current consumption | max. 50 mA |
|---|---|
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
Parameterization
| PIN 2 | Input/Diagnostic |
|---|---|
| PIN 4 | Input |
Connections
| Fieldbus | via internal system connection |
|---|---|
| Sensor-system/actuator supply | via internal system connection (max. 2× 4 A) |
| I/O ports | M12 (female) 5-pole, A-coded |
Diagnostic
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879048552 |
| eClass | 27242604 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 56606 56606 EN_56606.pdf | 178 Kbytes |
 |
| Download general catalog |
|
