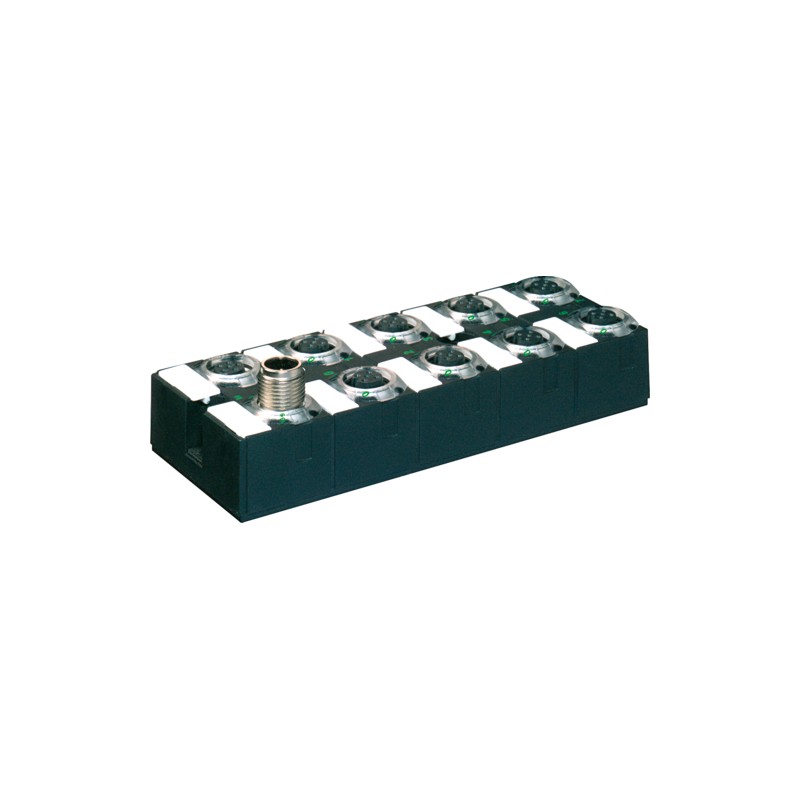

56601 MURRELEKTRONIK CUBE67 I/O EXTENSION MODULE 16 multifunction channels
56601
MURRELEKTRONIK
CUBE67 I/O EXTENSION MODULE 16 multifunction channels
CUBE67 I/O EXTENSION MODULE
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲DIO16 - 0.5 A (E) - 8× M12
short-circuit and overload protected
Digital inputs/outputs (multifunctional)
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
| Mounting method | 2-hole screw mounting |
|---|---|
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| Protection | IP67 |
| Dimensions H×W×D | 126×50×34.5 mm |
| Lamp load | 10 W |
|---|---|
| Actuator supply UA | 24 V DC (EN 61131-2), via system connection (max. 4 A) |
| Switching current per output | max. 0.5 A (short-circuit and overload protected) |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
|---|---|
| Type | for 3-wire sensors or mechanical switches, PNP |
| Input filter | 1 ms |
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
|---|---|
| Current consumption | max. 50 mA |
| PIN 4 | Input/Output |
|---|---|
| PIN 2 | Input/Output/Diagnostic |
| Fieldbus | via internal system connection |
|---|---|
| Sensor-system/actuator supply | via internal system connection (max. 2× 4 A) |
| I/O ports | M12 (female) 5-pole, A-coded |
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Actuator warning | per channel via LED and BUS |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
| country of origin | CZ |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879048590 |
| eClass | 27242604 |
| Packaging unit | 1.000 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 56601 56601 EN_56601.pdf | 198 Kbytes |
|
