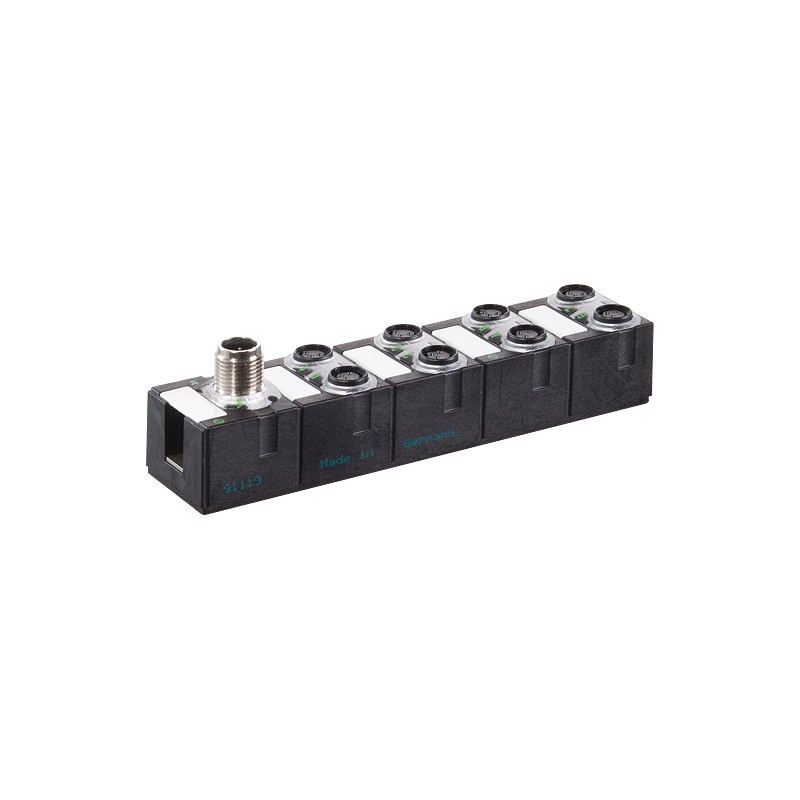

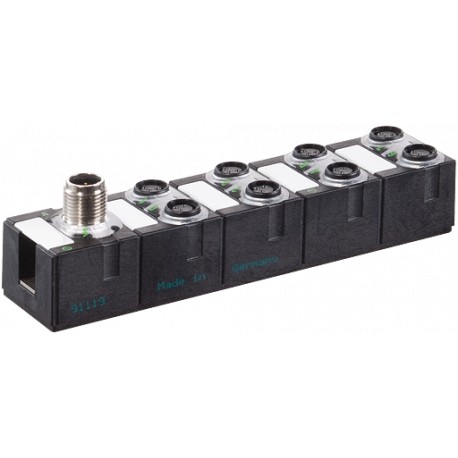

56420 MURRELEKTRONIK MASI68 I/O MODULE
56420
MURRELEKTRONIK
MASI68 I/O MODULE
MASI68 I/O MODULE 8 digital inputs
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 56420 |
| Weight: | 0.13 kg |
DI8 - 0.2 A (C) 8×M8 (AB)
Connection cables are in the online shop under "Connection Technology". Housing fully potted.
| Type | for 3-wire sensors or mechanical switches, PNP |
|---|---|
| Sensor supply US | max. 200 mA from AS-Interface (short-circuit and overload protected) |
| Fieldbus | A-coded |
|---|---|
| I/O ports | M8, 3-pole |
| Bus voltage (AS-Interface) | 26.5...31.6 V DC |
|---|---|
| ASI-Power 24 | yes |
| Total current | max. 250 mA |
| Addressing | via master or M12 connection and programming device, presetting 2 × address 0 |
| Address range | 1...62 (2 × 1...31 A or B) |
| Profile (IO/ID/ID2 code) | 2 × S-0.A.0 |
| Protection | IP68 |
|---|---|
| Mounting method | screw fixing |
| Temperature range | -20...+60 °C (storage temperature -20...+70 °C) |
| Dimensions H × W × D | 126×30×34.5 mm |
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module |
| Monitoring - no voltage | yes |
| country of origin | DE |
|---|---|
| customs tariff number | 85176200 |
| EAN | 4048879048941 |
| eClass | 27242604 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 56420 56420 56420_Data_Sheet_1.pdf | 152 Kbytes |
|
| Download general catalog |
|
