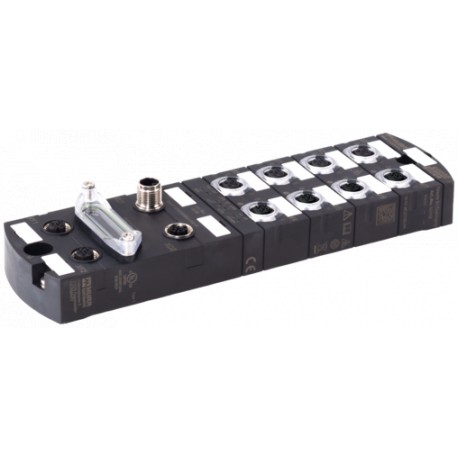

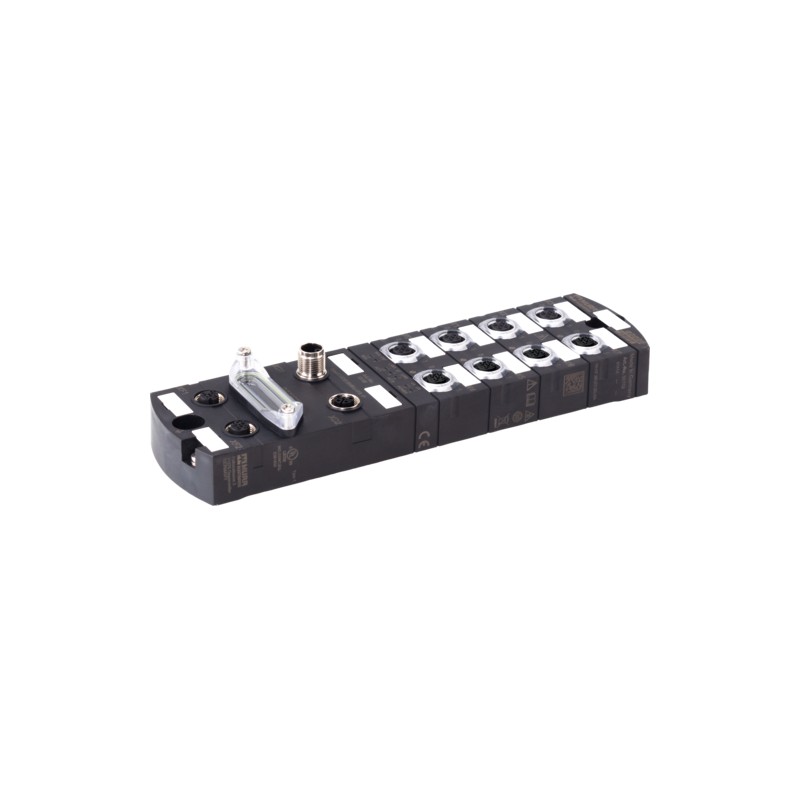

55155 MURRELEKTRONIK IMPACT67 PN DO16 M12L 4P galvanic separation PROFINET, compact module
55155
MURRELEKTRONIK
IMPACT67 PN DO16 M12L 4P galvanic separationPROFINET, compact module
IMPACT67 PN DO16 M12L 4P galvanic separation
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲DO16 (IRT)
Ethernet 10/100 Mbit/s; M12, D-coded
M12, 5-pole, A-coded
FSU (Fast-Start-Up)
Galvanic isolation
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
| Mounting method | 2-hole screw mounting |
|---|---|
| Temperature range | -25...+55 °C (storage temperature -25...+70 °C) |
| Protection | IP67 |
| Dimensions H×W×D | 37×63×225 mm |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 9 A |
|---|---|
| Switching current per output | max. 2 A (short-circuit and overload protected) |
| PIN 4 | Output |
|---|---|
| PIN 2 | Output |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
|---|---|
| I/O ports | M12, 5-pole, A-coded |
| Specification | V2.3, Conformance Class C (IRT) |
|---|---|
| Addressing | DCP |
| FSU (Fast-Start-Up) | max. 500 ms |
| PROFINET Netload Class | III |
| Shared Device | yes, for 2 controls |
| Product article number of manufacturer | 55155 |
|---|
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Actuator warning | per channel via LED and BUS |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Cable break | per port |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 55155 55155 EN_55155.pdf | 78 Kbytes |
|
| Download general catalog |
|
