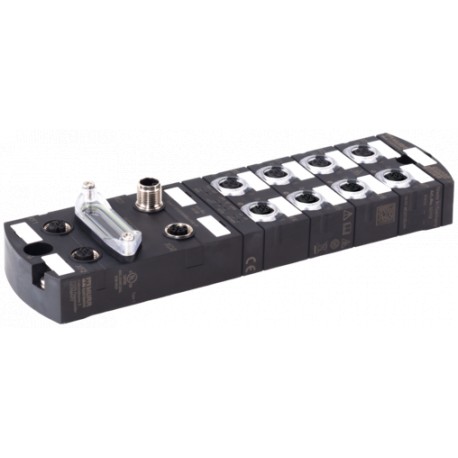

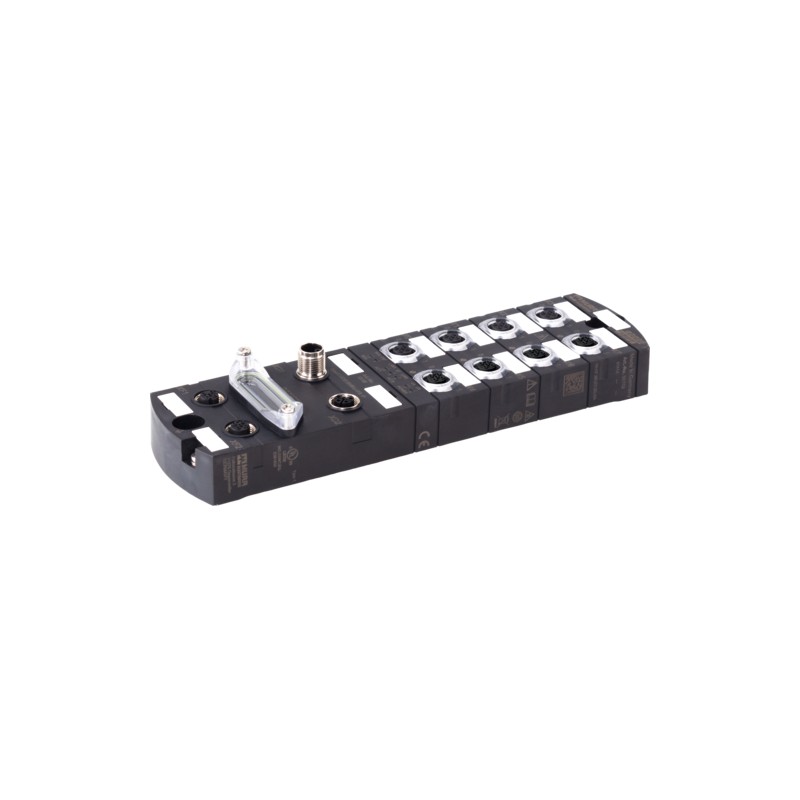

55153 MURRELEKTRONIK IMPACT67 PN DI16 M12L 4P galvanic separation PROFINET, compact module
55153
MURRELEKTRONIK
IMPACT67 PN DI16 M12L 4P galvanic separationPROFINET, compact module
IMPACT67 PN DI16 M12L 4P galvanic separation
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲DI16 (IRT)
Ethernet 10/100 Mbit/s; M12, D-coded
M12, 5-pole, A-coded
FSU (Fast-Start-Up)
Galvanic isolation
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
| Mounting method | 2-hole screw mounting |
|---|---|
| Temperature range | -25...+55 °C (storage temperature -25...+70 °C) |
| Protection | IP67 |
| Dimensions H×W×D | 37×63×225 mm |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
|---|---|
| Type | for 3-wire sensors or mechanical switches, PNP |
| PIN 4 | Input |
|---|---|
| PIN 2 | Input |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
|---|---|
| I/O ports | M12, 5-pole, A-coded |
| Specification | V2.3, Conformance Class C (IRT) |
|---|---|
| Addressing | DCP |
| FSU (Fast-Start-Up) | max. 500 ms |
| PROFINET Netload Class | III |
| Shared Device | yes, for 2 controls |
| Product article number of manufacturer | 55153 |
|---|
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Actuator warning | per channel via LED and BUS |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Cable break | per port |
