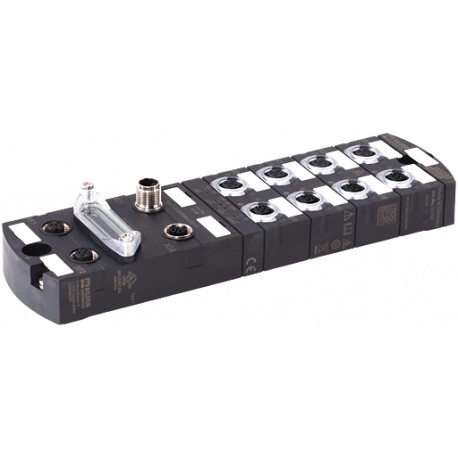

55150 MURRELEKTRONIK Impact67 PN DIO16 M12L 4P ProfiNet, Compact module,
55150
MURRELEKTRONIK
Impact67 PN DIO16 M12L 4P ProfiNet, Compact module,
Impact67 PN DIO16 M12L 4P
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲DIO16 (IRT)
Ethernet 10/100 Mbit/s; M12, D-coded
M12 Power, 4-pole, L-coded
M12, 5-pole, A-coded
Connection cables are in the online shop under "Connection Technology". Housing fully potted.
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
|---|---|
| Type | for 3-wire sensors or mechanical switches, PNP |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
|---|---|
| Sensor-system/actuator supply | M12 Power, 4-pole, L-coded, 2× max. 16 A |
| I/O ports | M12, 5-pole, A-coded |
| Protection | IP67 |
|---|---|
| Mounting method | 2-hole screw mounting, compatible with I/O modules of MVK model range |
| Dimensions H×W×D | 37×63×225 mm |
| Temperature range | -25...+55 °C (storage temperature -25...+70 °C) |
| FSU (Fast-Start-Up) | max. 500 ms |
|---|---|
| Shared Device/Input | yes, for 2 controls |
| PROFINET Netload Class | III |
| Specification | V2.3, Conformance Class C (IRT) |
| Addressing | DCP |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 9 A |
|---|---|
| Switching current per output | max. 1.6 A (short-circuit and overload protected) |
| Lamp load | 10 W |
| PIN 4 | Input/Output (port X0...X7) |
|---|---|
| PIN 2 | Input/Output (port X0...X7) |
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
| Actuator warning | per channel via LED and BUS |
| Cable break | per port |
| country of origin | DE |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879735742 |
| eClass | 27242604 |
| Packaging unit | 1 |
