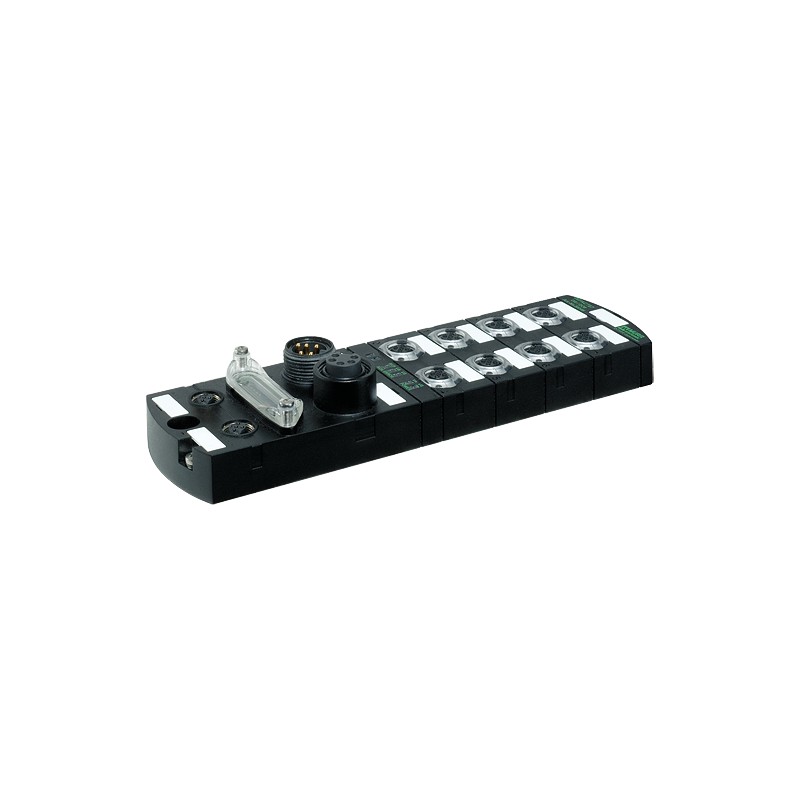

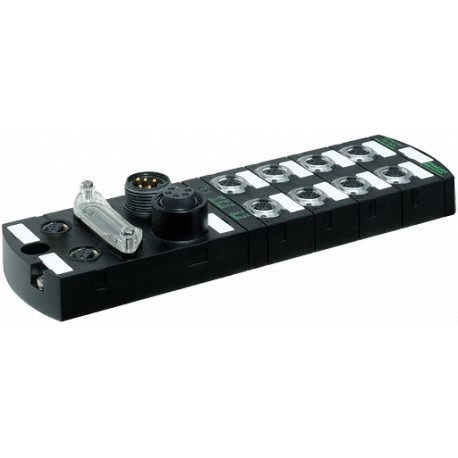

55089 MURRELEKTRONIK IMPACT67 compact module, plastic, 7/8”
55089
MURRELEKTRONIK
IMPACT67 compact module, plastic, 7/8”
IMPACT67 compact module, plastic, 7/8”EthernetIP, 16 multifunction channels
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 55089 |
| Weight: | 0.52 kg |
DIO8 (DIO8)
Connection cables are in the online shop under "Connection Technology". Housing fully potted.
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected |
|---|---|
| Type | for 3-wire sensors or mechanical switches, PNP |
| Fieldbus | Ethernet 10/100 Mbit/s; M12, D-coded |
|---|---|
| Sensor-system/actuator supply | 7/8", 5-pole, 2 × max. 9 A |
| I/O ports | M12, 5-pole, A-coded |
| Protection | IP67 |
|---|---|
| Mounting method | 2 hole screw mounting, compatible with I/O modules of MVK model range |
| Temperature range | -25...+55 °C (storage temperature -25...+70 °C) |
| Dimensions H × W × D | 39×63×225 mm |
| Addressing | DHCP, BOOTP or IP address by rotary switch |
|---|---|
| DLR (Device Level Ring) | yes |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 9 A |
|---|---|
| Switching current per output | max. 1.6 A (short-circuit and overload protected) |
| Lamp load | 10 W |
| PIN 4 | Input/Output (port X0...X7) |
|---|---|
| PIN 2 | Input/Output (port X0...X7) |
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
| country of origin | DE |
|---|---|
| customs tariff number | 85389099 |
| EAN | 4048879445467 |
| eClass | 27242604 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 55089 55089 55089_Data_Sheet_1.pdf | 196 Kbytes |
|
