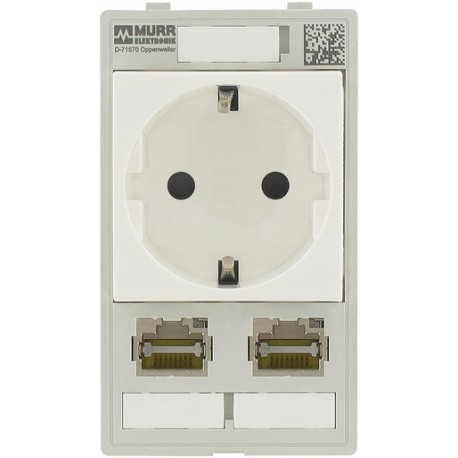

4000-68000-4500004 MURRELEKTRONIK MODLINK MSDD SINGLE COMBI INSERT GERMANY, 2xRJ45
4000-68000-4500004
MURRELEKTRONIK
MODLINK MSDD SINGLE COMBI INSERT GERMANY, 2xRJ45
Interfaces cabinets, beacons and luminaries
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 4000-68000-4500004 |
| Weight: | 0.046 kg |
2 × RJ45, 8-pole metal, CAT6A (female/female)
| Protection | IP20 |
|---|---|
| Dimensions H × W × D | 87.5 (3.44) × 50.7 (1.99) × 43 (1.69) mm (in) |
| Temperature range | -5...+50 °C |
| Storage temperature range | -10...+60 °C (14...140 °F) |
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
|---|---|
| Operating current (UL Rating) | max. 175 mA |
| Connection front side | RJ45 |
| Connection rear side | RJ45 |
| Locking of ports | Snap In |
| Specification | CAT6A |
| Connection | Threaded hole M4 |
|---|---|
| Tightening torque | 0.9 Nm ±0.1 |
| Operating voltage | 250 V AC |
|---|---|
| Operating current | 16 A |
| No. of poles | 2 + PE |
| Connection | Spring clamp terminals: max. 2 × 2.5 mm² (AWG 14) |
| country of origin | CZ |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879620826 |
| eClass | 27189217 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 4000-68000-4500004 4000-68000-4500004 4000-68000-4500004_Data_Sheet_1.pdf | 76 Kbytes |
|
