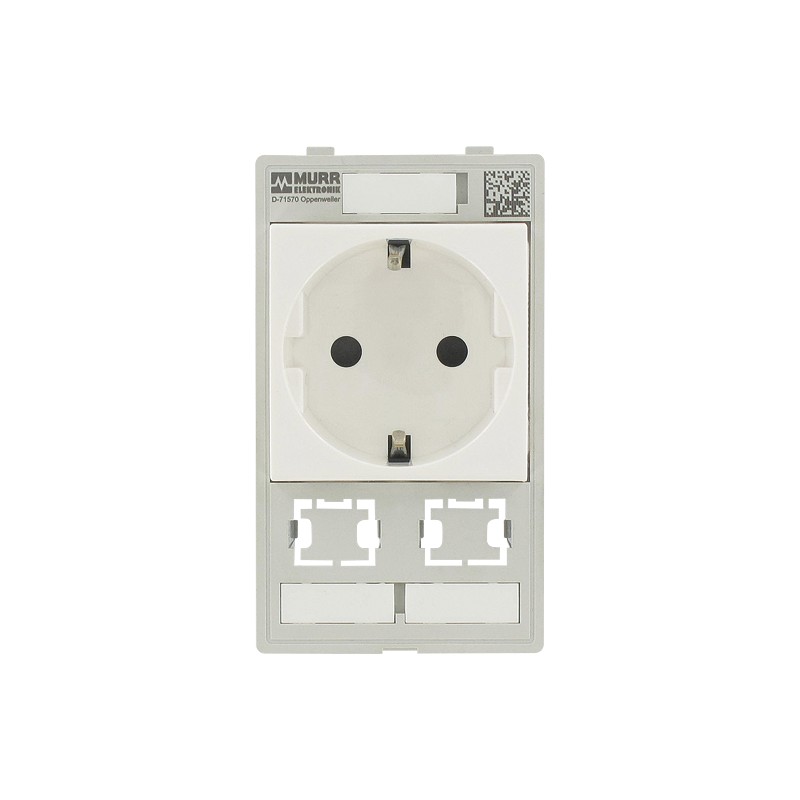

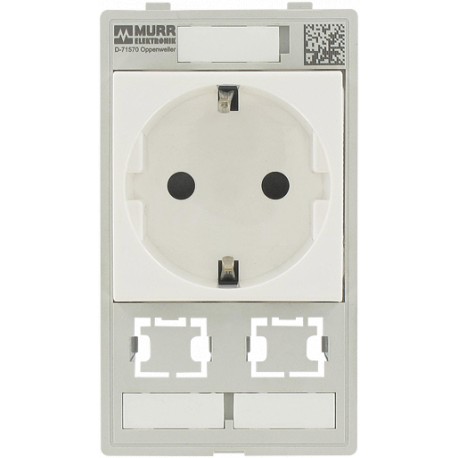

4000-68000-4500000 MURRELEKTRONIK MODLINK MSDD SINGLE COMBI INSERT GERMANY, 2x Datenausschnitt
4000-68000-4500000
MURRELEKTRONIK
MODLINK MSDD SINGLE COMBI INSERT GERMANY, 2x Datenausschnitt
MODLINK MSDD SINGLE COMBI INSERT GERMANY2x data cutout
Interfaces cabinets, beacons and luminaries
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 4000-68000-4500000 |
| Weight: | 0.049 kg |
2 × data cut-out
| Protection | IP20 |
|---|---|
| Dimensions H × W × D | 87.5 (3.44) × 50.7 (1.99) × 43 (1.69) mm (in) |
| Temperature range | -5...+50 °C |
| Storage temperature range | -10...+60 °C (14...140 °F) |
| Connection | Threaded hole M4 |
|---|---|
| Tightening torque | 0.9 Nm ±0.1 |
| Operating voltage | 250 V AC |
|---|---|
| Operating current | 16 A |
| No. of poles | 2 + PE |
| Connection | Spring clamp terminals: max. 2 × 2.5 mm² (AWG 14) |
| country of origin | DE |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879593427 |
| eClass | 27189217 |
| Packaging unit | 1 |
Datasheet - PDF
