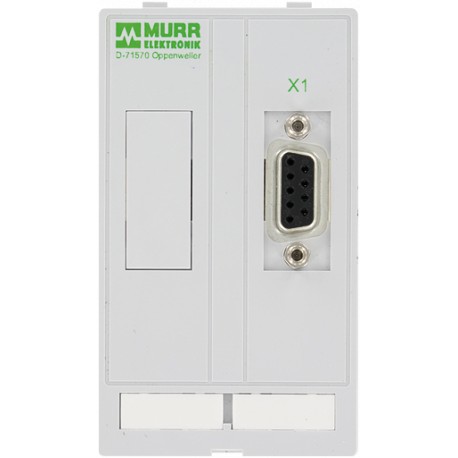

4000-68000-2000000 MURRELEKTRONIK MODLINK MSDD DATA INSERT, 1×SUB-D9 Buchse/Buchse Profi bus interface
4000-68000-2000000
MURRELEKTRONIK
MODLINK MSDD DATA INSERT, 1×SUB-D9 Buchse/Buchse Profi bus interface
MODLINK MSDD DATA INSERT1×SUB-D9 female/female Profi bus interface
Interfaces cabinets, beacons and luminaries
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 4000-68000-2000000 |
| Weight: | 0.175 kg |
1 × blind plug for SUB-D9, 1 × SUB-D9 (female) PROFIBUS
| Dimensions H × W × D | 88×51×40 mm |
|---|
| Operating voltage | 48 V AC/DC |
|---|---|
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
| Operating current | 3 A |
| Operating current (UL Rating) | max. 175 mA |
| No. of poles | 9-pole |
| Connection front side | SUB-D (female) |
| Connection rear side | SUB-D (female) |
| Locking of ports | UNC 4...40 bolt |
| country of origin | CZ |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879301947 |
| eClass | 27189217 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 4000-68000-2000000 4000-68000-2000000 4000-68000-2000000_Data_Sheet_1.pdf | 61 Kbytes |
|
