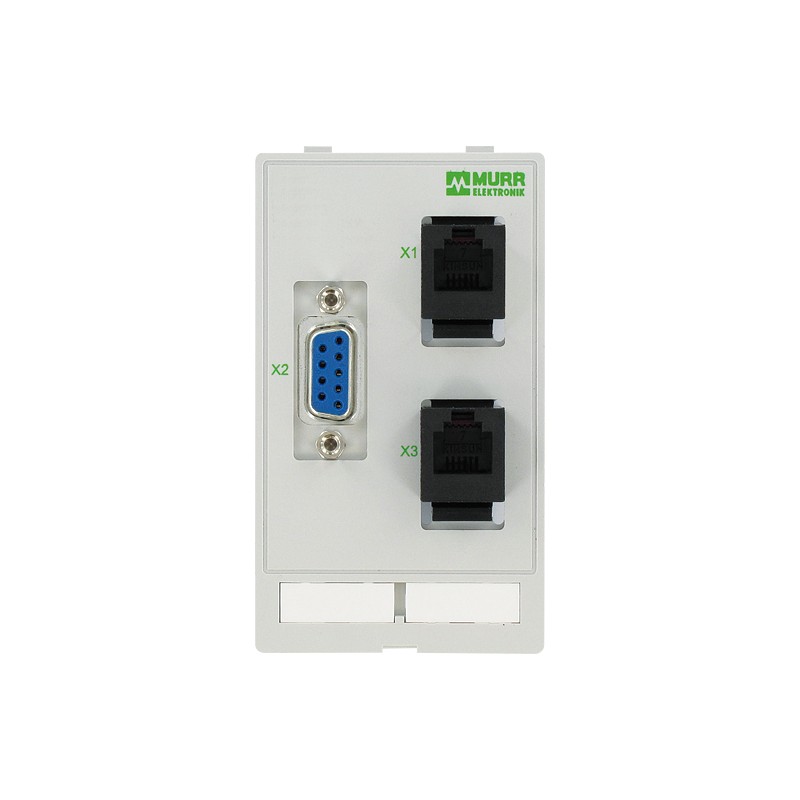

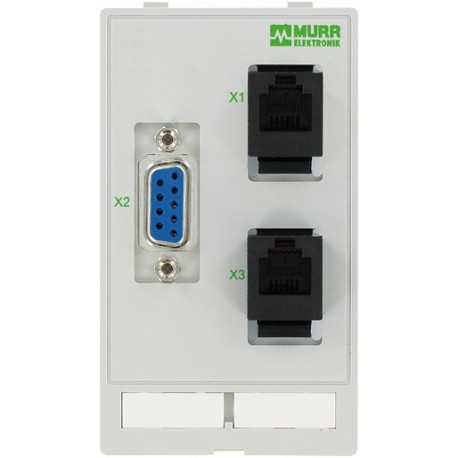

4000-68000-1090000 MURRELEKTRONIK MODLINK MSDD DATA INSERT, 1×SUB-D9 Buchse/Buchse + 2×RJ12
4000-68000-1090000
MURRELEKTRONIK
MODLINK MSDD DATA INSERT, 1×SUB-D9 Buchse/Buchse + 2×RJ12
Interfaces cabinets, beacons and luminaries
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 4000-68000-1090000 |
| Weight: | 0.045 kg |
2 × RJ12, 6-pole plastic
1 × SUB-D9 (female/female)
| Dimensions H × W × D | 88×51×25 mm |
|---|
| Operating voltage | 48 V AC/DC |
|---|---|
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
| Operating current | 3 A |
| Operating current (UL Rating) | max. 175 mA |
| No. of poles | 9-pole |
| Connection front side | SUB-D (female) |
| Connection rear side | SUB-D (female) |
| Locking of ports | UNC 4...40 bolt |
| Operating voltage | max. 48 V AC/DC |
|---|---|
| Operating voltage (UL Rating) | max. 30 V AC/42.4 V DC |
| Operating current | max. 1 A |
| Operating current (UL Rating) | max. 175 mA |
| Connection front side | RJ12 |
| Connection rear side | RJ12 |
| Locking of ports | Snap In |
| country of origin | DE |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879037709 |
| eClass | 27189217 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 4000-68000-1090000 4000-68000-1090000 4000-68000-1090000_Data_Sheet_1.pdf | 71 Kbytes |
|
