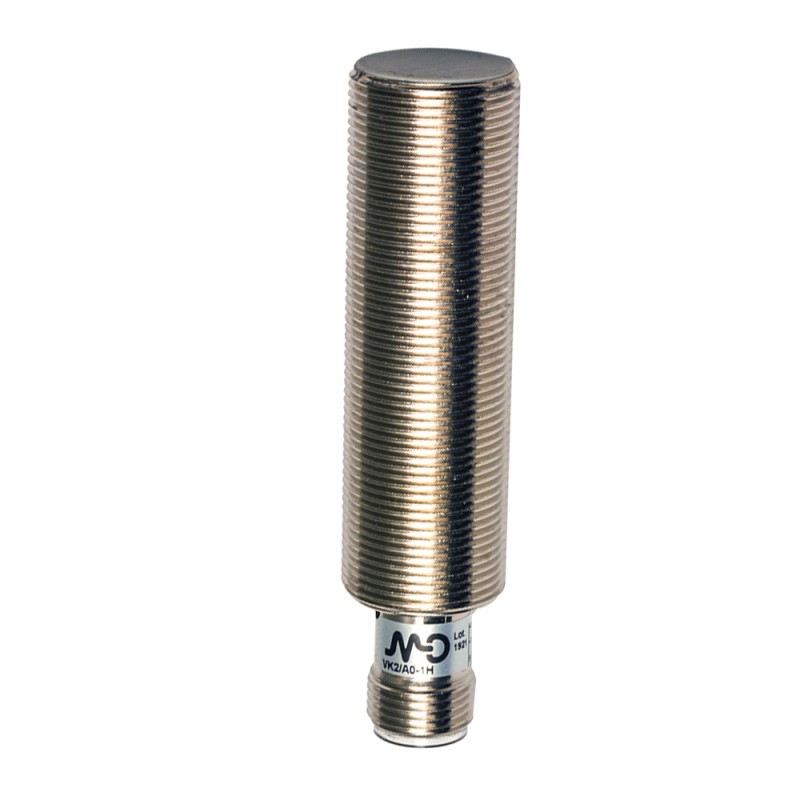

VK2/C0-1H MICRO DETECTORS Inductive sensor M18 shielded NC plug M12
VK2/C0-1H
MICRO DETECTORS
Inductive sensor M18 shielded NC plug M12
VK2/C0-1H Inductive sensor M18 shielded NC conn. M12
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 5mm | |
| Operanting distance | 0…4mm | |
| Standard target | 18x18mm FE360 | |
| Correction Factor | copper: 0,35 / aluminium: 0,40 / brass: 0,50 / stainless steel: 0,80 | |
| Thermal drift of Sr | < 10% | |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 … 20% | |
Outputs
| Output type | TRIAC | |
| Output Function | NC | |
| Switching frequency | 25Hz | |
Electrical data
| Operating Voltage | 20 - 253Vac - 50/60Hz | |
| Load current | 7A (Ton = 10ms) | |
| Leakage current | ≤ 1mA RMS max | |
| Output voltage drop | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Max ripple content | ≤10% | |
| LED indicators | Yellow LED output state | |
| Time delay before availability | 200ms | |
| Inrush current | 7A (Ton = 10ms) | |
Mechanical data
| Dimensions | M18 x 1 / L = 73,3mm | |
| Mounting | Shielded | |
| Weight | 30g | |
| Housing Material | Nickel-plated brass | |
| Connections | 25Nm | |
| Active Head Material | PBT | |
| Tightening torque | 5...300mA | |
| Operating temperature | -25°C…+70°C | |
Test/Approvals
| Approvals | CEUR | |
| EMC compatibility | M12 Plug | |
| Shocks and vibrations | IEC 60947-5-2 | |
| Degree of protection | IP 67 (EN60529) | |
Accessories
| Supplied Accessories | 2 nuts M18x1 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Installation
Response curves
Disassamento Parallelo
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
