> MICRO DETECTORS>Encoders>V3K1/R0-3Q MICRO DETECTORS Inductive sensor M18, shielded, 1/2"-20UNF plug cable exit, NO (Vac)-NO/NC (Vdc)
Previous Product Next Product

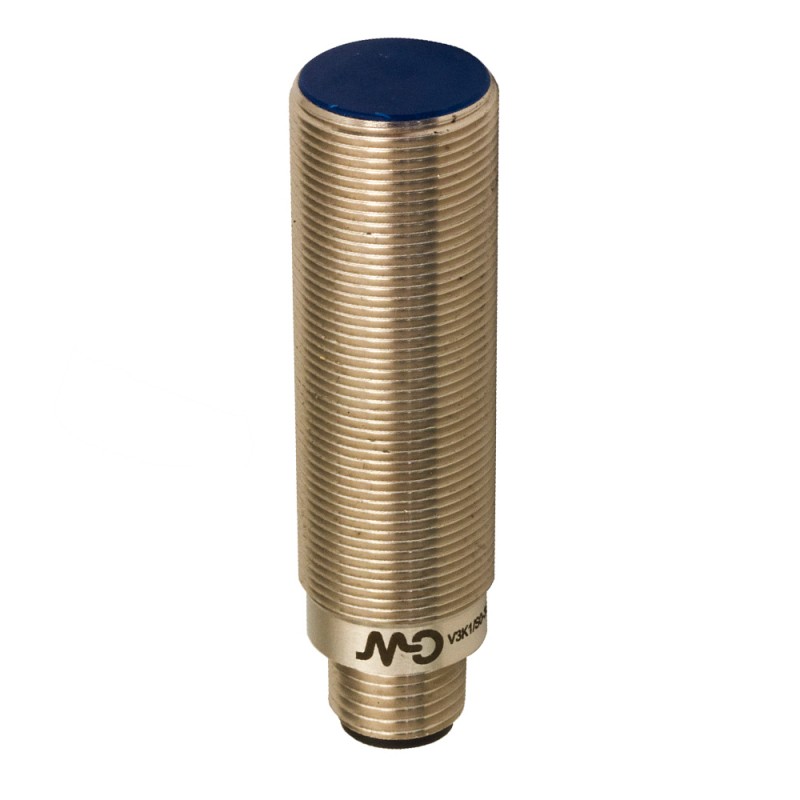

V3K1/R0-3Q MICRO DETECTORS Inductive sensor M18, shielded, 1/2"-20UNF plug cable exit, NO (Vac)-NO/NC (Vdc) View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

V3K1/R0-3Q MICRO DETECTORS Inductive sensor M18, shielded, 1/2"-20UNF plug cable exit, NO (Vac)-NO/NC (Vdc)

V3K1/R0-3Q

MICRO DETECTORS

Inductive sensor M18, shielded, 1/2"-20UNF plug cable exit, NO (Vac)-NO/NC (Vdc)

More details


Encoders

* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

Total price: $74.62
Unit price: $74.62

Quantity Price
1+$74.62
2+$72.80
3+$66.01
4+$62.17
6+$58.33
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical features

Nominal sensing distance6mm
Operanting distance0…4,8mm
Standard target18x18mm FE360
Correction Factorrame: 0,39 / alluminio: 0,46 / ottone: 0,52 / acciaio INOX: 0,81
Thermal drift of Sr< 10%
Repeat Accuracy5% (UB 24V Ta=23°C ±5°C)
Hysteresis1 … 20%

Outputs

Output typeMOSFET
Output FunctionNO (Vac) - NO/NC (Vdc)
Switching frequency25Hz (AC) - 600Hz (DC)

Electrical data

Operating Voltage20 - 250Vac - 50/60Hz - 20…250Vdc
Load current600mA/150ms (AC/DC)
Leakage current1mA (Vac) - 0,7mA (Vdc)
Output voltage dropVibrazioni IEC 60068-2-6 / Urti IEC 60068-2-27
Max ripple content≤10%
LED indicatorsLED giallo stato dell'uscita
Time delay before availability100ms
Short-circuit protectionSi
Impulsive Overvoltage ProtectionSi
Inrush current600mA/150ms (AC/DC)
0,1µF @Vmax - 1µF @Vmin1µF @Vmax - 1µF @Vmin

Mechanical data

DimensionsM18 x 1 / L = 64,5mm
MountingSchermato
Weight45g
Housing MaterialOttone nichelato
Connections25Nm
Active Head MaterialPA4T
Tightening torque5…140ma(Vac) - 5…200mA (Vdc)
Operating temperature-25°C…+70°C

Test/Approvals

ApprovalsCEcULus
EMC compatibility½" - 20UNF Plug
Shocks and vibrationsIEC 60947-5-2
Degree of protectionIP 67 (EN60529)

Accessories

Supplied Accessories2 ghiere M18x1

Electrical diagrams of the connections


Connector


Dimension (mm)



Installation



Response curves

Disassamento Parallelo


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE MICRODETECTORS EN.pdf 4 Mbytes
Download general catalog Download general catalog
