MICRO DETECTORSEncodersV3K1/R0-3A8F MICRO DETECTORS Inductive sensor M18, shielded, PUR cable exit, NO (Vac)-NO/NC (Vdc)

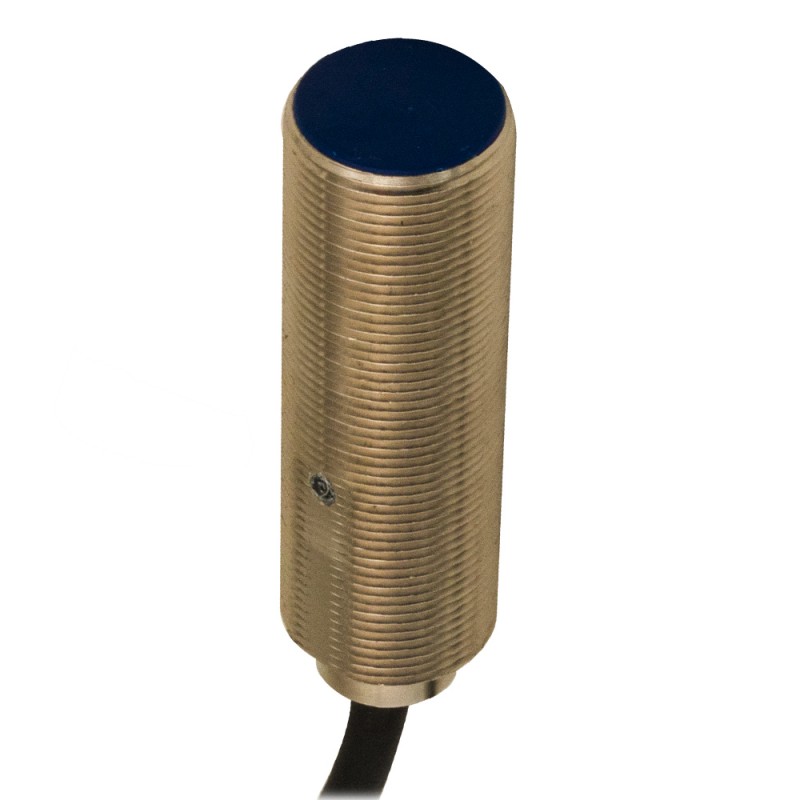

MICRO DETECTORS V3K1/R0-3A8F V3K1/R0-3A8F - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

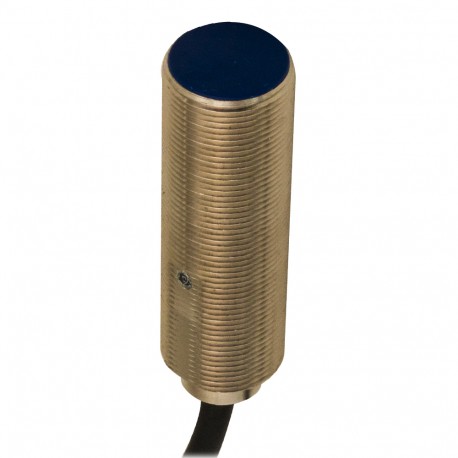

V3K1/R0-3A8F MICRO DETECTORS Inductive sensor M18, shielded, PUR cable exit, NO (Vac)-NO/NC (Vdc)

Reference: V3K1/R0-3A8F

Manufacturer: MICRO DETECTORS

Description:

Inductive sensor M18, shielded, PUR cable exit, NO (Vac)-NO/NC (Vdc)
V3K1/R0-3A8F Inductive sensor M18, shielded, PUR cable exit, NO (Vac)-NO/NC (Vdc)

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 55,57 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distance6mm
Operanting distance0…4,8mm
Standard target18x18mm FE360
Correction Factorcopper: 0,39 / aluminium: 0,46 / brass: 0,52 / stainless steel: 0,81
Thermal drift of Sr< 10%
Repeat Accuracy5% (UB 24V Ta=23°C ±5°C)
Hysteresis1 … 20%

Outputs

Output typeMOSFET
Output FunctionNO (Vac) - NO/NC (Vdc)
Switching frequency25Hz (AC) - 600Hz (DC)

Electrical data

Operating Voltage20 - 250Vac - 50/60Hz - 20…250Vdc
Load current600mA/150ms (AC/DC)
Leakage current1mA (Vac) - 0,7mA (Vdc)
Output voltage dropVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Max ripple content≤10%
LED indicatorsYellow LED output state
Time delay before availability100ms
Short-circuit protectionYes
Impulsive Overvoltage ProtectionYes
Inrush current600mA/150ms (AC/DC)
0,1µF @Vmax - 1µF @Vmin1µF @Vmax - 1µF @Vmin

Mechanical data

DimensionsM18 x 1 / L = 60mm
MountingShielded
Weight100g
Housing MaterialNickel-plated brass
Connections25Nm
Active Head MaterialPA4T
Tightening torque5…140ma(Vac) - 5…200mA (Vdc)
Operating temperature-25°C…+70°C

Test/Approvals

ApprovalsCEcULus
EMC compatibility2m PUR Cable
Shocks and vibrationsIEC 60947-5-2
Degree of protectionIP 67 (EN60529)

Accessories

Supplied Accessories2 nuts M18x1

Electrical diagrams of the connections


Dimension (mm)
