MICRO DETECTORSEncodersV3E1/S0-3A8F MICRO DETECTORS Inductive sensor M8, shielded, PUR cable exit, NC (Vac)-NC (Vdc)

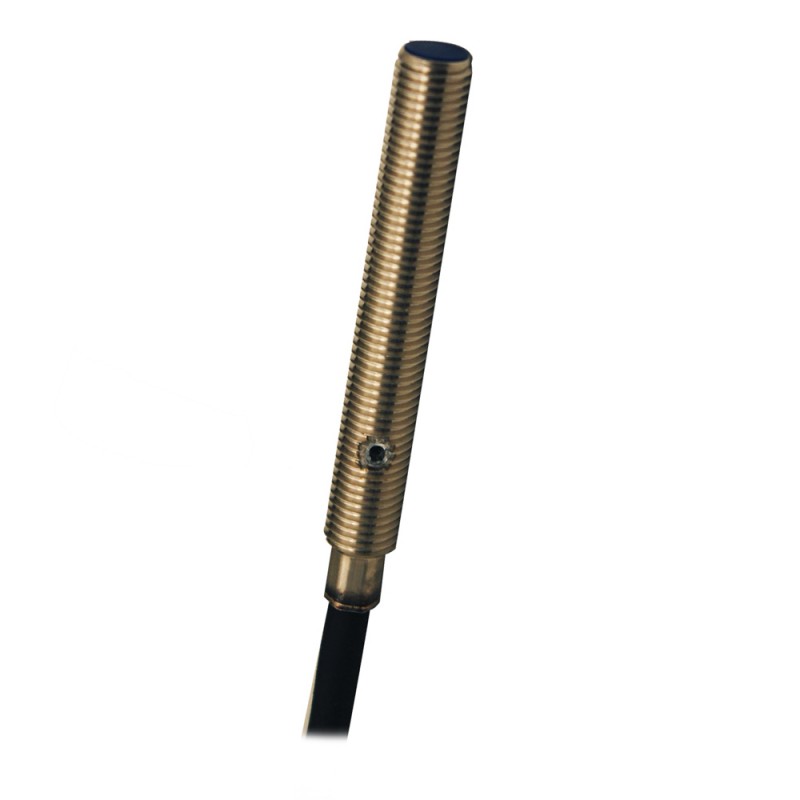

MICRO DETECTORS V3E1/S0-3A8F V3E1/S0-3A8F - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

V3E1/S0-3A8F MICRO DETECTORS Inductive sensor M8, shielded, PUR cable exit, NC (Vac)-NC (Vdc)

Reference: V3E1/S0-3A8F

Manufacturer: MICRO DETECTORS

Description:

Inductive sensor M8, shielded, PUR cable exit, NC (Vac)-NC (Vdc)
V3E1/S0-3A8F Inductive sensor M8, shielded, PUR cable exit, NC (Vac)-NC (Vdc)

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 58,36 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance2mm
Operanting distance0…1,6mm
Standard target8x8mm FE360
Correction Factorcopper: 0,51 / aluminium: 0,48 / brass: 0,56 / stainless steel: 0,83
Thermal drift of Sr< 10%
Repeat Accuracy5% (UB 24V Ta=23°C ±5°C)
Hysteresis1 … 20%

Outputs

Output typeMOSFET
Output FunctionNC
Switching frequency25Hz (AC) - 900Hz (DC)

Electrical data

Operating Voltage20 - 120Vac - 50/60Hz - 20…120Vdc
Load current150mA/150ms (AC/DC)
Leakage current0,55mA (Vac) - 0,40mA (Vdc)
Output voltage dropVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Max ripple content≤10%
LED indicatorsYellow LED output state
Time delay before availability100ms
Short-circuit protectionYes
Impulsive Overvoltage ProtectionYes
Inrush current150mA/150ms (AC/DC)
0,1µF @Vmax - 1µF @Vmin0,1µF @Vmax - 1µF @Vmin

Mechanical data

DimensionsM8 x 1 / L = 61,9mm
MountingShielded
Weight70g
Housing MaterialNickel-plated brass
Connections3Nm
Active Head MaterialPA4T
Tightening torque5…55ma(Vac) - 5…80mA (Vdc)
Operating temperature-25°C…+70°C

Test/Approvals

ApprovalsCEcULus
EMC compatibility2m PUR Cable
Shocks and vibrationsIEC 60947-5-2
Degree of protectionIP 67 (EN60529)

Accessories

Supplied Accessories2 nuts M8x1

Electrical diagrams of the connections


Dimension (mm)
