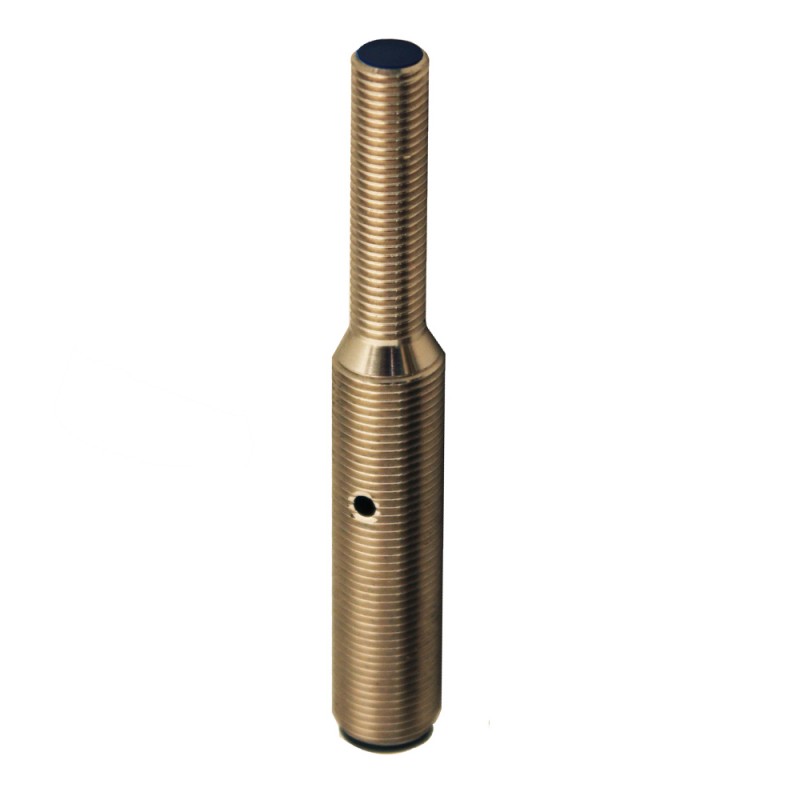

V3E1/R0-3Q MICRO DETECTORS Inductive sensor M8, shielded, 1/2"-20UNF plug cable exit, NO (Vac)-NO/NC (Vdc)
V3E1/R0-3Q
MICRO DETECTORS
Inductive sensor M8, shielded, 1/2"-20UNF plug cable exit, NO (Vac)-NO/NC (Vdc)
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 2mm | |
| Operanting distance | 0…1,6mm | |
| Standard target | 8x8mm FE360 | |
| Correction Factor | copper: 0,51 / aluminium: 0,48 / brass: 0,56 / stainless steel: 0,83 | |
| Thermal drift of Sr | < 10% | |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 … 20% | |
Outputs
| Output type | MOSFET | |
| Output Function | NO (Vac) - NO/NC (Vdc) | |
| Switching frequency | 25Hz (AC) - 900Hz (DC) | |
Electrical data
| Operating Voltage | 20 - 250Vac - 50/60Hz - 20…250Vdc | |
| Load current | 600mA/150ms (AC/DC) | |
| Leakage current | 1mA (Vac) - 0,7mA (Vdc) | |
| Output voltage drop | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Max ripple content | ≤10% | |
| LED indicators | Yellow LED output state | |
| Time delay before availability | 100ms | |
| Short-circuit protection | Yes | |
| Impulsive Overvoltage Protection | Yes | |
| Inrush current | 600mA/150ms (AC/DC) | |
| 0,1µF @Vmax - 1µF @Vmin | 1µF @Vmax - 1µF @Vmin | |
Mechanical data
| Dimensions | M8 x 1 / L = 82mm | |
| Mounting | Shielded | |
| Weight | 20g | |
| Housing Material | Nickel-plated brass | |
| Connections | 3Nm | |
| Active Head Material | PA4T | |
| Tightening torque | 5…140ma(Vac) - 5…200mA (Vdc) | |
| Operating temperature | -25°C…+70°C | |
Test/Approvals
| Approvals | CEcULus | |
| EMC compatibility | ½" - 20UNF Plug | |
| Shocks and vibrations | IEC 60947-5-2 | |
| Degree of protection | IP 67 (EN60529) | |
Accessories
| Supplied Accessories | 2 nuts M8x1 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Installation
Response curves
Disassamento Parallelo
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
