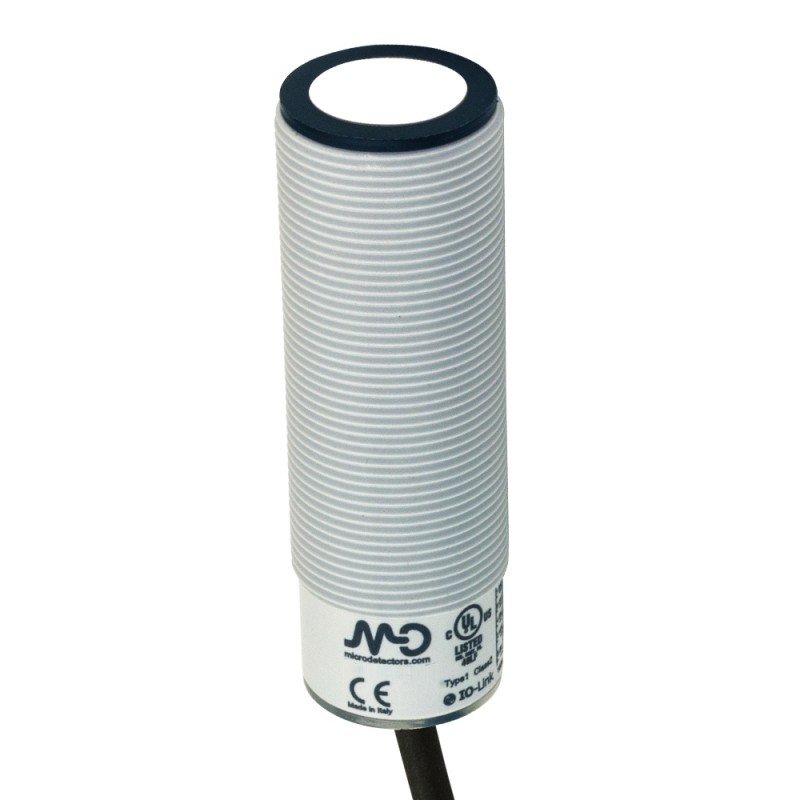

UT1B/E1-0AUL MICRO DETECTORS Ultrasonic sensor M30 analogic 0-10 V 250-3500 mm cable 2m with teach-in button..
UT1B/E1-0AUL
MICRO DETECTORS
Ultrasonic sensor M30 analogic 0-10 V 250-3500 mm cable 2m with teach-in button, cULus
Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 3500mm | |
| Thermal drift of Sr | ±5% | |
| Repeat Accuracy | 1% | |
| Beam angle | ± 7° | |
| Resolution | 4mm | |
| Sensitivity adjustment | Teach-in button | |
| Hysteresis | 1% | |
| thermal compensation | Yes | |
| Minimum sensing distance (blind zone) | 250mm | |
| Linearity error | 1% | |
Outputs
| Output type | Analog 0…10V | |
| Output Function | Positive ramp | |
| Response time | 600ms | |
Electrical data
| Operating Voltage | 15 - 30Vdc | |
| No-Load supply current | ≤50mA | |
| Load current | 100mA | |
| Leakage current | 10μA @ 30Vcc | |
| Output voltage drop | 2,2Vmax. @ IL=100 mA | |
| Max ripple content | 5% | |
| LED indicators | Green LED: echo active - Yellow LED: output active | |
| Time delay before availability | ≤900ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Impulsive Overvoltage Protection | Yes | |
| Minimum load resistence | 3kΩ (voltage analog output) | |
Mechanical data
| Dimensions | M30 x 1,5 / L = 89mm | |
| Weight | 200g | |
| Housing Material | PBT | |
| Connections | 2m PVC cable | |
| Active Head Material | Epoxy-glass resin | |
| Tightening torque | 1,5Nm | |
| Operating temperature | - 20°C…+ 70°C | |
| Storage temperature | - 35°C…+ 70° C (without freeze) | |
| Transducer Frequency | 112KHz | |
Test/Approvals
| Approvals | CEcULus | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | IEC EN 60947-5-2 / 7.4 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | 2 x M30x1,5 nuts, 2 flexible washers Ø 30 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Disassamento Parallelo
