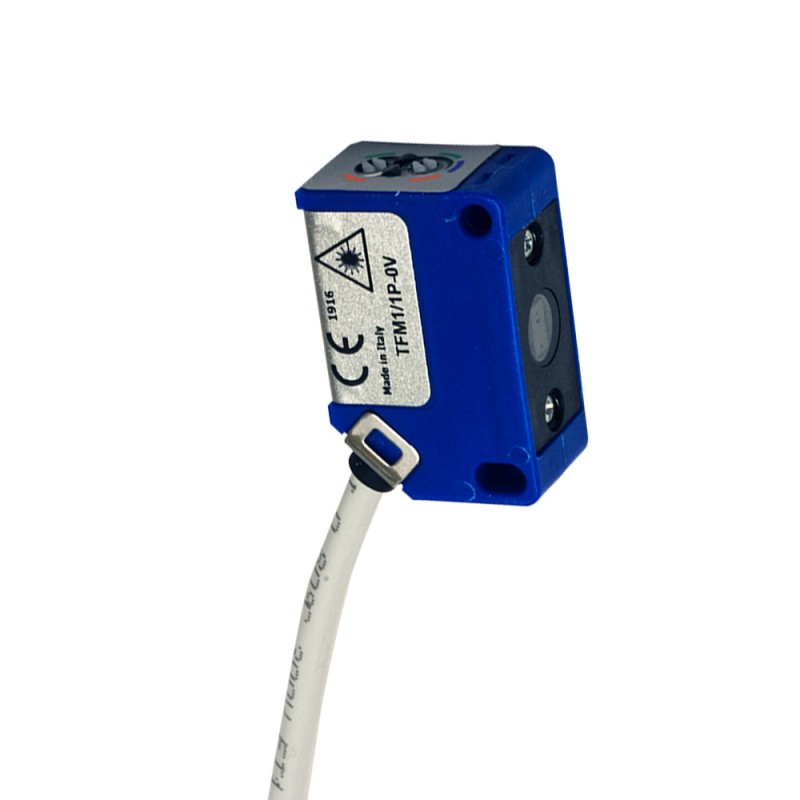

MICRO DETECTORS TFM4/1X-0V TFM4/1X-0V - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

TFM4/1X-0V MICRO DETECTORS Time of flight miniaturized sensor push-pull output, Sensing distance 600mm, swit..

Reference: TFM4/1X-0V

Manufacturer: MICRO DETECTORS

Description:

Time of flight miniaturized sensor push-pull output, Sensing distance 600mm, switching frequency 10Hz programmable
TFM4/1X-0V Time of flight miniaturized sensor push-pull output, Sn 600mm, switching frequency 10Hz programmable

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 114,42 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distance0 … 600mm (white 90%)0 … 350mm (grey 18%)0 … 3000mm (black 6%)
Spot dimensionDivergent (25°) wide angle
Resolution3mm
Sensitivity adjustmentTrimmer
Hysteresis± 6mm

Application

Function PrincipleTime of fligth

Outputs

Output type2 x Push-Pull
Output FunctionLO
Switching frequency≤ 10Hz

Electrical data

Operating Voltage19,2 … 28,8 Vdc
No-Load supply current< 40 mA
Load current50mA
Leakage current≤ 10µA @Vdc max.
Output voltage drop≤ 2V @IL=50mA
Max ripple content< 10%
LED indicatorsGreen: Run (target inside the detection distance)Yellow 1: output 1 activeYellow 2: output 2 activeRed: warning (target out of operative range)
Short-circuit protectionYes
Reverse Polarity ProtectionYes
Emissioninfrared (LASER)
Impulsive Overvoltage ProtectionYes

Mechanical data

Dimensions13 x 2x 31,2mm
Housing MaterialPA66 + ABS
ConnectionsPigtail 200mm + M8 - 4 poles
Active Head MaterialGlass
Operating temperature-10°C … + 50°C
Storage temperature30°C … +90°C
humidity< 80% (without condensation)

Test/Approvals

ApprovalsCE
EMC compatibilityAccording to IEC60947-5-2
Degree of protectionIP67
