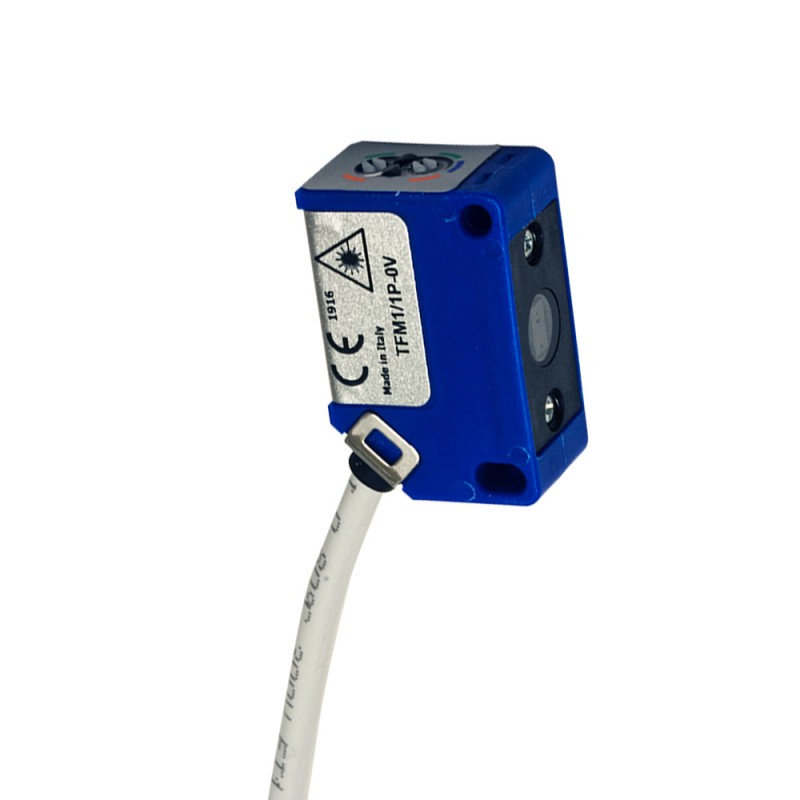

MICRO DETECTORS TFM1/8X-0V TFM1/8X-0V - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

TFM1/8X-0V MICRO DETECTORS Time of flight miniaturized sensor push-pull output, Sensing distance 180mm, swit..

Reference: TFM1/8X-0V

Manufacturer: MICRO DETECTORS

Description:

Time of flight miniaturized sensor push-pull output, Sensing distance 180mm, switching frequency 80Hz programmable
TFM1/8X-0V Time of flight miniaturized sensor push-pull output, Sn 180mm, switching frequency 80Hz programmable

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distance0 … 180mm (white 90%)0 … 140mm (grey 18%)0 … 110mm (black 6%)
Spot dimensionDivergent (25°) wide angle
Resolution1mm
Sensitivity adjustmentTrimmer
Hysteresis± 12mm

Application

Function PrincipleTime of fligth

Outputs

Output type2 x Push-Pull
Output FunctionLO
Switching frequency≤ 80Hz

Electrical data

Operating Voltage19,2 … 28,8 Vdc
No-Load supply current< 40 mA
Load current50mA
Leakage current≤ 10µA @Vdc max.
Output voltage drop≤ 2V @IL=50mA
Max ripple content< 10%
LED indicatorsGreen: Run (target inside the detection distance)Yellow 1: output 1 activeYellow 2: output 2 activeRed: warning (target out of operative range)
Short-circuit protectionYes
Reverse Polarity ProtectionYes
Emissioninfrared (LASER)
Impulsive Overvoltage ProtectionYes

Mechanical data

Dimensions13 x 2x 31,2mm
Housing MaterialPA66 + ABS
ConnectionsPigtail 200mm + M8 - 4 poles
Active Head MaterialGlass
Operating temperature-10°C … + 50°C
Storage temperature30°C … +90°C
humidity< 80% (without condensation)

Test/Approvals

ApprovalsCE
EMC compatibilityAccording to IEC60947-5-2
Degree of protectionIP67
