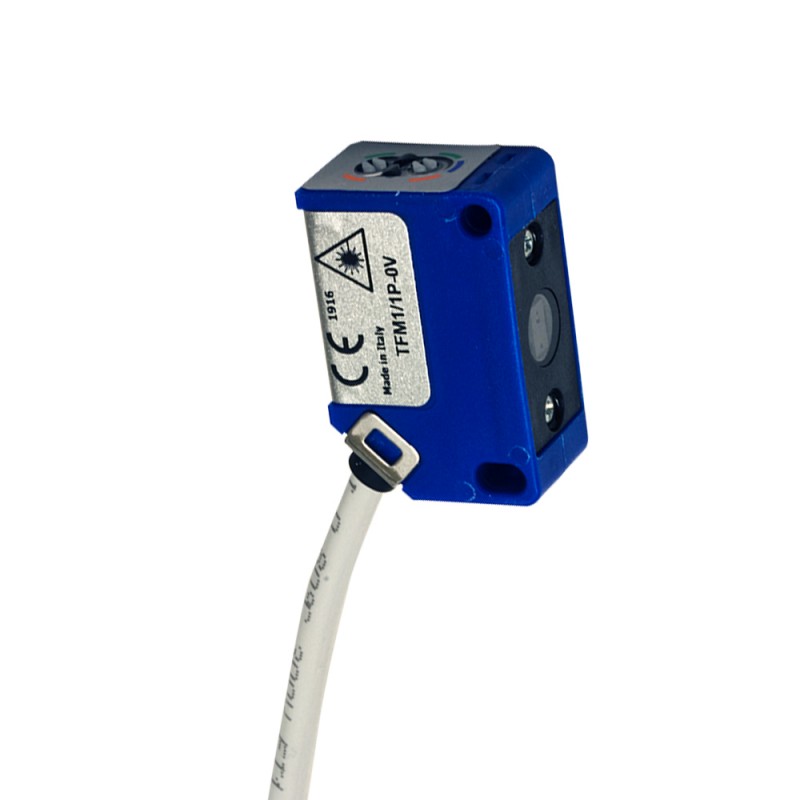

TFM1/1X-0V MICRO DETECTORS Time of flight miniaturized sensor push-pull output, Sensing distance 180mm, swit..
TFM1/1X-0V
MICRO DETECTORS
Time of flight miniaturized sensor push-pull output, Sensing distance 180mm, switching frequency 10Hz programmable
TFM1/1X-0V Time of flight miniaturized sensor push-pull output, Sn 180mm, switching frequency 10Hz programmable
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 0 … 180mm (white 90% - grey 18% - black 6%) | |
| Spot dimension | Divergent (25°) wide angle | |
| Resolution | 1mm | |
| Sensitivity adjustment | Trimmer | |
| Hysteresis | ± 4mm | |
Application
| Function Principle | Time of fligth | |
Outputs
| Output type | 2 x Push-Pull | |
| Output Function | LO | |
| Switching frequency | ≤ 10Hz | |
Electrical data
| Operating Voltage | 19,2 … 28,8 Vdc | |
| No-Load supply current | < 40 mA | |
| Load current | 50mA | |
| Leakage current | ≤ 10µA @Vdc max. | |
| Output voltage drop | ≤ 2V @IL=50mA | |
| Max ripple content | < 10% | |
| LED indicators | Green: Run (target inside the detection distance)Yellow 1: output 1 activeYellow 2: output 2 activeRed: warning (target out of operative range) | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | infrared (LASER) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 13 x 2x 31,2mm | |
| Housing Material | PA66 + ABS | |
| Connections | Pigtail 200mm + M8 - 4 poles | |
| Active Head Material | Glass | |
| Operating temperature | -10°C … + 50°C | |
| Storage temperature | 30°C … +90°C | |
| humidity | < 80% (without condensation) | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | According to IEC60947-5-2 | |
| Degree of protection | IP67 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Disassamento Parallelo
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
