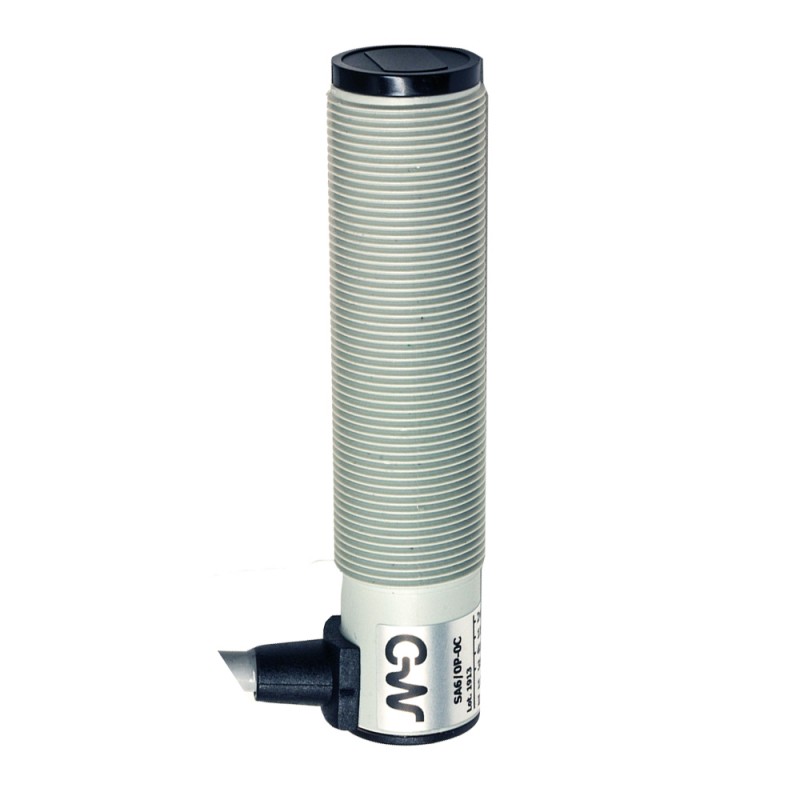

STOK MICRO DETECTORS Shutter

Reference: STOK

Manufacturer: MICRO DETECTORS

Description:

Shutter

Categories:

  • MICRO DETECTORS > Sensors

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance150mm
Thermal drift of Sr10% Sr
Repeat Accuracy5%
Sensitivity adjustmentTrimmer

Application

Function PrincipleDiffuse reflection
NotesWith 100x100 mm white matt paper
Optic positionAxial

Outputs

Output typeNPN
Output FunctionLO/DO selectable
Switching frequency1kHz

Electrical data

Operating Voltage10-30Vdc
No-Load supply current≤30mA
Load current≤100mA
Leakage current≤10µA
Output voltage drop≤2V IL=100mA
Max ripple content≤ 10%
LED indicatorsYellow (output energized), green (supply), red (activated output)
Time delay before availability200ms
Short-circuit protectionYes
Reverse Polarity ProtectionYes
EmissionInfrared (880nm)
Interference to external light3.000lux (incandescent lamp), 10.000lux (sunlight)

Mechanical data

Dimensions21,4mmx89,8mm
Weight75g
Housing MaterialPBT
ConnectionsRight angle cable 2m PVC
Active Head MaterialPMMA
Tightening torque1Nm
Operating temperature- 25°C…+ 70° C (without freeze)

Test/Approvals

ApprovalsCE
EMC compatibilityEN 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP67

Accessories

Supplied AccessoriesMetallic nut (2x)

Electrical diagrams of the connections


Dimension (mm)



Response curves

Dimensione Spot


Disassamento Parallelo


Eccesso di Guadagno


DATASHEET - PDF
