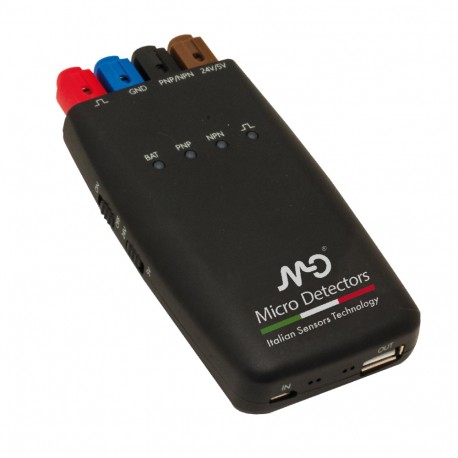

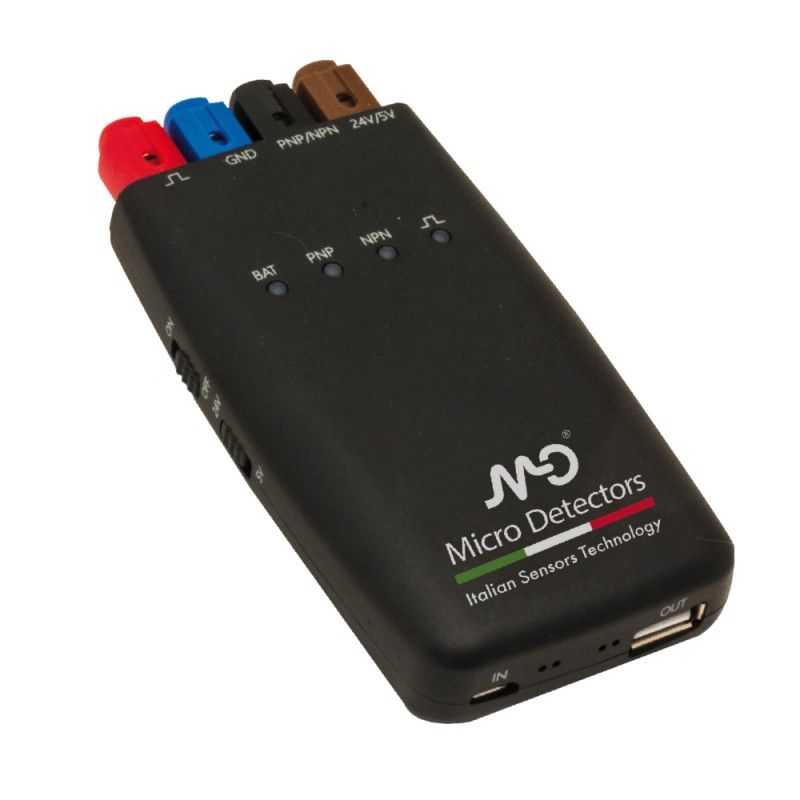

ST 300D MICRO DETECTORS Li-ion rechargable supplier for digital sensors
ST 300D
MICRO DETECTORS
Li-ion rechargable supplier for digital sensors
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
Application
| Description | DC sensors tester. | |
| Usable with | Accessories suitable for all types of photoelectric and proximity sensors | |
| Sensor ouput type detection | NPN / PNP (Automatic detect) | |
| Functions | Short circuit protectionSleeping modePositive pulse | |
Electrical data
| Output voltage | 4,8 … 5,2 V (OUT + 5V)19 … 24,5V (OUT + 24V)4,8 … 5,2 (USB) | |
| Output current for sensors | ≤ 200mA (@5V)≤ 150mA (@24V) | |
| Battery capacity | 2500 mAh | |
| Operating time | 10h (@24V, 15mA) | |
| Charging time | ≤ 6h | |
| Battery | The product contains a non removable Li-ion battery. For the delivery of the product, follow the National and IATA regulations. | |
Mechanical data
| Dimensions | 124x22x23mm | |
| Weight | 190g | |
| Operating temperature | -10°C … +45°C | |
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
