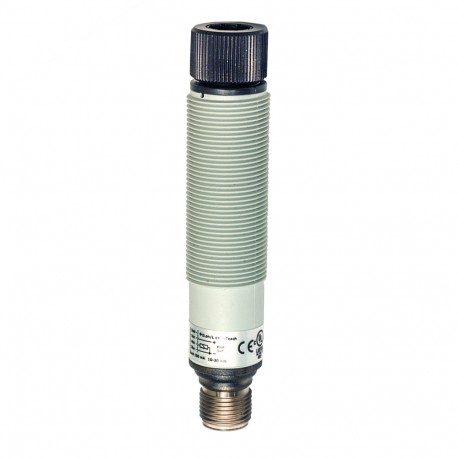

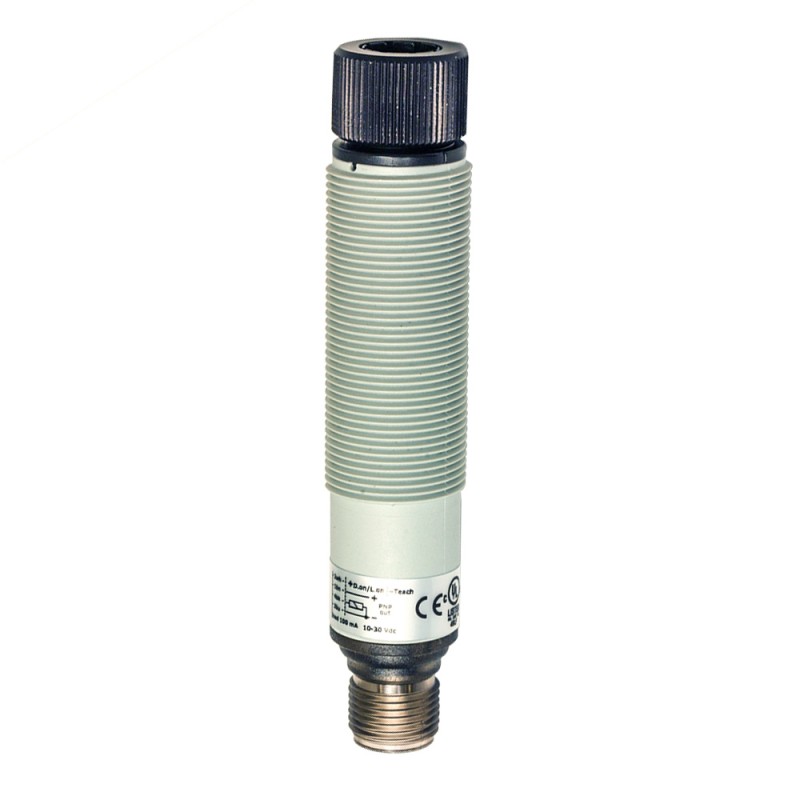

SSF/0P-0E MICRO DETECTORS Fibre amplifier PNP L/D Teach-in plastic plug M12
SSF/0P-0E
MICRO DETECTORS
Fibre amplifier PNP L/D Teach-in plastic plug M12
SSF/0P-0E Optical Fibre Amplifier PNP L/D Teach-in plast. conn. M12
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | Depending on optical fibres | |
| Thermal drift of Sr | 10 % Sr | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Teach-in | |
Outputs
| Output type | PNP | |
| Output Function | LO / DO selectable | |
| Switching frequency | 800 Hz | |
Electrical data
| Operating Voltage | 10….30 Vdc | |
| No-Load supply current | ≤ 20mA | |
| Load current | 100 mA | |
| Leakage current | ≤ 10 µA | |
| Output voltage drop | 2V max | |
| Max ripple content | ≤ 10 % | |
| LED indicators | Yellow | |
| Time delay before availability | 150 ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Red (660nm) | |
| Interference to external light | 3.000lux (incandescent lamp), 10.000lux (sunlight) | |
Mechanical data
| Dimensions | M18 x 1 / L = 90mm | |
| Weight | 30 g | |
| Housing Material | PBT | |
| Connections | M12 Plug | |
| Active Head Material | Depending on optical fibres | |
| Tightening torque | 1 Nm | |
| Operating temperature | - 25°C…+ 70°C (without freeze) | |
Test/Approvals
| Approvals | CEUL | |
| Degree of protection | IP67 (EN60529) | |
Accessories
| Supplied Accessories | Plastic nut (2 x) | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
