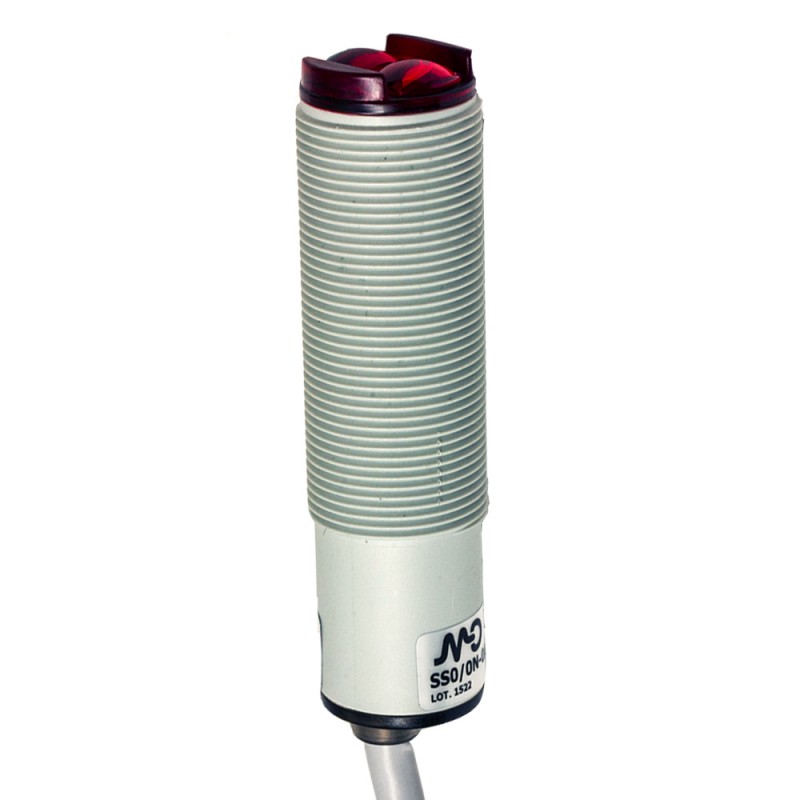

SS1/0P-0A MICRO DETECTORS Photoelectric sensor BGS 100 mm PNP L/D plastic cable 2m axial
SS1/0P-0A
MICRO DETECTORS
Photoelectric sensor BGS 100 mm PNP L/D plastic cable 2m axial
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 100mm | |
| Thermal drift of Sr | ≤10% Sr | |
| Repeat Accuracy | 5% | |
| minimum detectable object | 3,5mm | |
| Sensitivity adjustment | No | |
Application
| Function Principle | background suppression | |
| Notes | with white target Kodak 90% 100 x 100 | |
| Optic position | Axial | |
Outputs
| Output type | PNP | |
| Output Function | LO/DO selectable | |
| Switching frequency | 1Khz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | ≤30mA | |
| Load current | ≤100mA | |
| Leakage current | ≤10μA | |
| Output voltage drop | 1,2Vmax. IL =100 mA | |
| Max ripple content | 10% | |
| LED indicators | Yellow (output state) | |
| Time delay before availability | ≤200ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Red (660 nm) | |
| Interference to external light | 3000lux (incandescent lamp), 10000lux (sunlight) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | M18 x 1/L=63,9mm | |
| Weight | 70g | |
| Housing Material | PBT | |
| Connections | 2m PVC cable | |
| Active Head Material | PMMA | |
| Tightening torque | 25Nm | |
| Operating temperature | - 25°C…+ 70° C (Without freeze) | |
Test/Approvals
| Approvals | CE, cULus | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | nuts M18 x 1 | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
