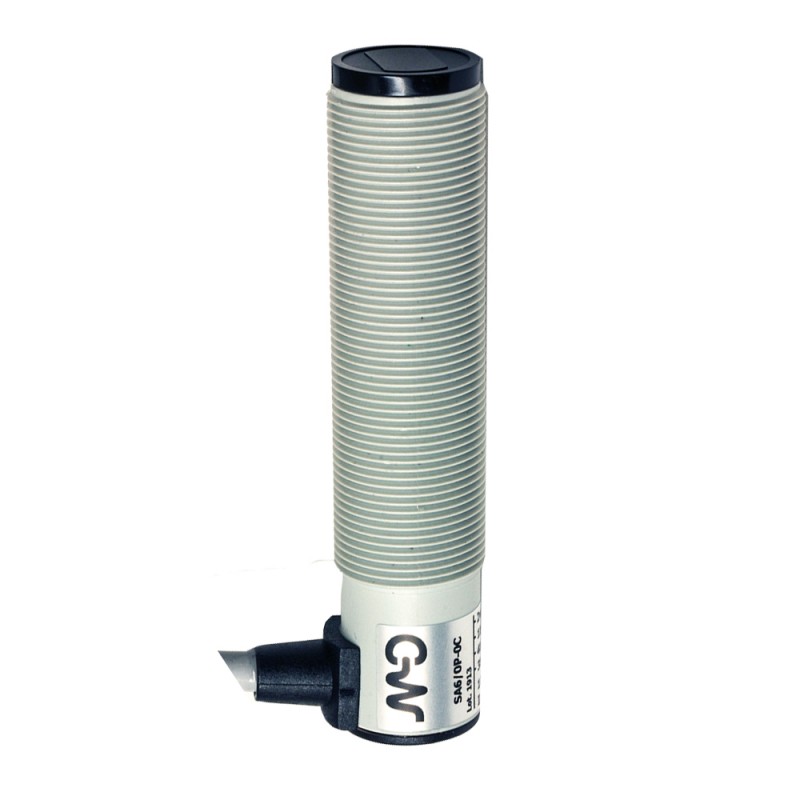

SPC/LP-0E MICRO DETECTORS Photoelectric sensor Retroreflective 4m PNP LO plastic plug M12
SPC/LP-0E
MICRO DETECTORS
Photoelectric sensor Retroreflective 4m PNP LO plastic plug M12
SPC/LP-0E Photoelectric sensor Retroreflective 4m PNP LO plast. conn. M12
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 150mm | |
| Thermal drift of Sr | 10% Sr | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Trimmer | |
Application
| Function Principle | Diffuse reflection | |
| Notes | With 100x100 mm white matt paper | |
| Optic position | Axial | |
Outputs
| Output type | NPN | |
| Output Function | LO/DO selectable | |
| Switching frequency | 1kHz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | ≤30mA | |
| Load current | ≤100mA | |
| Leakage current | ≤10µA | |
| Output voltage drop | ≤2V IL=100mA | |
| Max ripple content | ≤ 10% | |
| LED indicators | Yellow (output energized), green (supply), red (activated output) | |
| Time delay before availability | 200ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Infrared (880nm) | |
| Interference to external light | 3.000lux (incandescent lamp), 10.000lux (sunlight) | |
Mechanical data
| Dimensions | 21,4mmx89,8mm | |
| Weight | 75g | |
| Housing Material | PBT | |
| Connections | Right angle cable 2m PVC | |
| Active Head Material | PMMA | |
| Tightening torque | 1Nm | |
| Operating temperature | - 25°C…+ 70° C (without freeze) | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | Metallic nut (2x) | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
