SBCR03/S-AM MICRO DETECTORS Control Unit with muting 24VDC
SBCR03/S-AM
MICRO DETECTORS
Control Unit with muting 24VDC

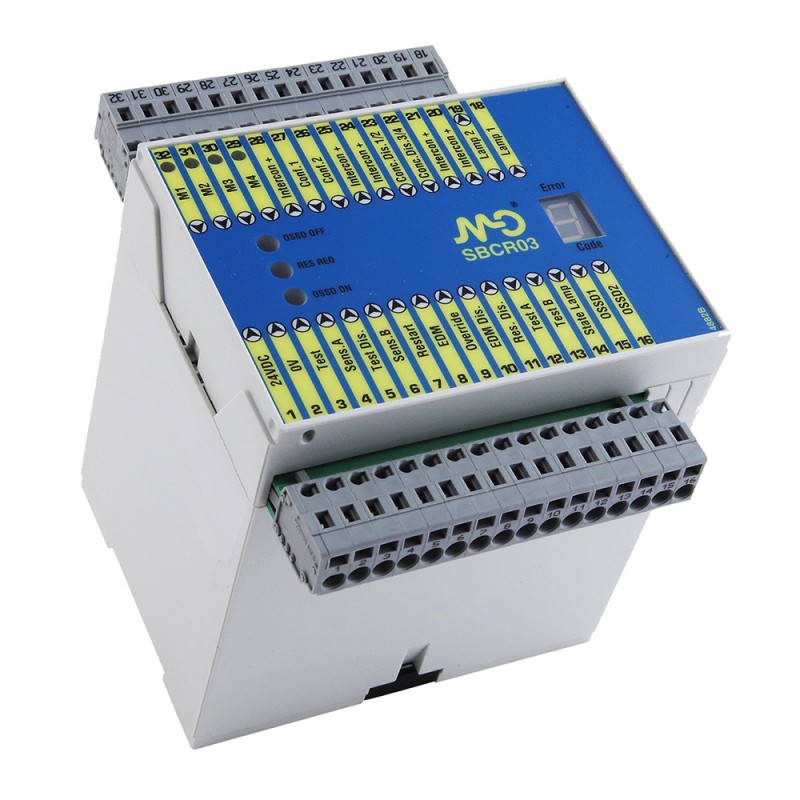

SBCR03/S-AM Control Unit with muting 24VDC
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | According to the sensors used:SH4/*-**IA up to 10mTH6/*-*IA up to 60m | |
Application
| Function Principle | Control unit | |
| Available functions | Manual/Automatic Restart, EDM, Muting, Double Muting, Override | |
| Max. number of sensors connected | 6 x SH4_IA/TH6_IA pairs | |
| Max. number of muting sensors | 4 x PNP-NO | |
| Muting lamp output | 2 x incandescent lamp (1 … 10W, 24Vdc) | |
| State lamp output | 1 x incandescent lamp (1 … 10W, 24Vdc) | |
| Type | 2 | |
| SIL | 1 | |
| SILCL | 1 | |
| PL | c | |
| PFHd | 1,00E-06 | |
| MTTFd | 20 | |
Outputs
| Output type | 2 x PNP - NO (OSSD safety output) | |
| Response time | ≤ 12ms | |
| Response Time (Test imput) | ≤ 30ms | |
| Tempo di Risposta (Muting function) | ≤ 270ms | |
| Recovery time | ≤ 50ms | |
Electrical data
| Operating Voltage | 16,8 … 28,8 Vdc | |
| No-Load supply current | 150mA | |
| Load current | 2 x 500mA | |
| Output voltage drop | 2,5V @ 500mA | |
| Cabel Length (Power Supply/Output) | ≤ 30m (cable section 0,5mm2)≤ 60m (cable section 2,5mm2) | |
| Cable Length (sensors) | ≤ 100m (cable section 2mm2) | |
| Ripple | ≤ 5% | |
| Power Consumption | 4W (without lamps/loads) | |
Mechanical data
| Dimensions | 121 x 105 x 100mm | |
| Housing Material | ABS UL VO | |
| Connections | 2 x terminals bar | |
| Operating temperature | 20°C … +60°C (without freeze) | |
| Storage temperature | -25°C … +75°C (without freeze) | |
| humidity | 15% … 95% (no condensation) | |
Test/Approvals
| Approvals | CE, TÜV | |
| Degree of protection | IP20 | |
Electrical diagrams of the connections
Dimension (mm)
Datasheet - PDF
