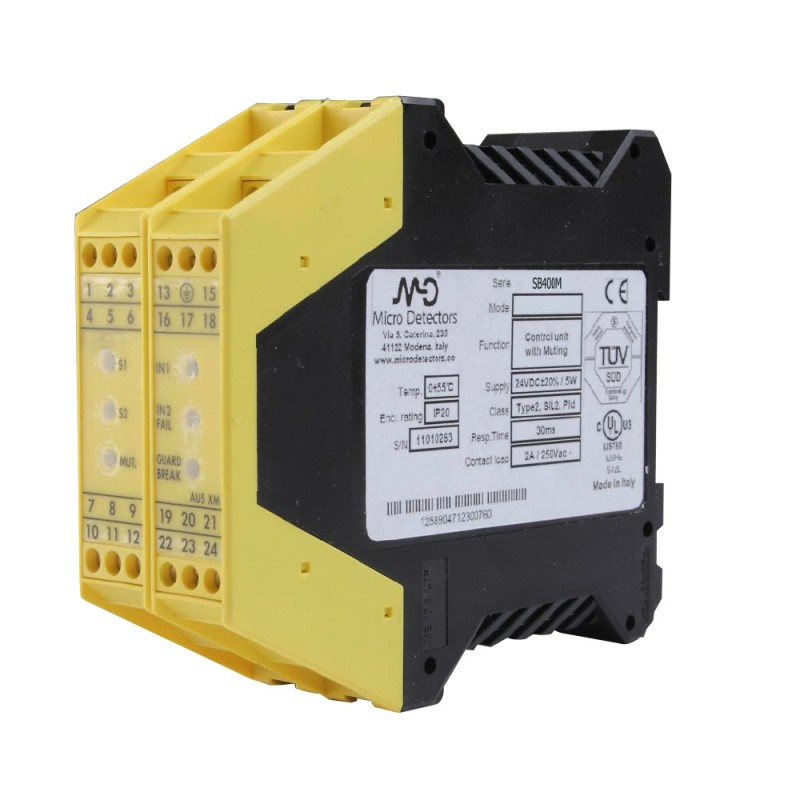

SB400M MICRO DETECTORS Relay module with muting function
SB400M
MICRO DETECTORS
Relay module with muting function
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | According to the sensors used:LS2 up to 12mLS4 up to 20m | |
Application
| Function Principle | Control unit | |
| Available functions | Manual/Automatic Restart, EDM, System Status, Muting, Override | |
| Description | Cat. 4 Safety Module with integrated Muting function | |
| Usable with | Safety light curtains: LS2, LS4, LP4 | |
| Max. number of sensors connected | 1 x LS2/LS4 receiver | |
| Max. number of muting sensors | 2 x PNP-NO | |
| Muting lamp output | 24V - 0,5 … 5W | |
| Type | 4 | |
| SIL | 4 | |
| SILCL | 4 | |
| PL | d (2A@230VAC; 1 comm. @30s)e (2A@230VAC; 1 comm. @60s)e (2A@230VAC; 1 comm. @1h)e (2A@230VAC; 1 comm. @24h)d (0,5A@230VAC; 1 comm. @30s)d (0,5A@230VAC; 1 comm. @60s)e (0,5A@230VAC; 1 comm. @1h)e (0,5A@230VAC; 1 comm. @24h) | |
| PFHd | 2,08E-08 (2A@230VAC; 1 comm. @30s)1,71E-08 (2A@230VAC; 1 comm. @60s)6,588E-09 (2A@230VAC; 1 comm. @1h)6,42E-09 (2A@230VAC; 1 comm. @24h)5,03E-08 (0,5A@230VAC; 1 comm. @30s)2.80E-08 (0,5A@230VAC; 1 comm. @60s)6,76E-09 (0,5A@230VAC; 1 comm. @1h) | |
| Dcavg | 98,89% (2A@230VAC; 1 comm. @30s)98,78% (2A@230VAC; 1 comm. @60s)98,78% (2A@230VAC; 1 comm. @1h)96,25% (2A@230VAC; 1 comm. @24h)98,94% (0,5A@230VAC; 1 comm. @30s)98,89% (0,5A@230VAC; 1 comm. @60s)97,01% (0,5A@230VAC; 1 comm. @1h)96,28% (0,5A@23 | |
| MTTFd | 25,97 (2A@230VAC; 1 comm. @30s)49,42 (2A@230VAC; 1 comm. @60s)100 (2A@230VAC; 1 comm. @1h)100 (2A@230VAC; 1 comm. @24h)13,25 (0,5A@230VAC; 1 comm. @30s)25,97 (0,5A@230VAC; 1 comm. @60s)100 (0,5A@230VAC; 1 comm. @1h)100 (0,5A@230VAC; 1 comm. @2 | |
| CFF | 80% | |
Outputs
| Output type | 2 x relay NO (OSSD safety output)1 x NO, 100mA, 24V (System Status) | |
| Response time | ≤ 20ms | |
| Override Time-out | 15 min | |
Electrical data
| Operating Voltage | 24Vdc ± 20% | |
| Load current | 2A @ 250V | |
| Cabel Length (Power Supply/Output) | ≤ 100m | |
| Cable Length (sensors) | ≤ 100m | |
| Power Consumption | ≤ 5W | |
Mechanical data
| Dimensions | 35 x 99 x 114,5 mm | |
| Connections | terminals | |
| Operating temperature | 0°C … + 55°C | |
Test/Approvals
| Approvals | CE, cULus, TÜV | |
| EMC compatibility | According to 2014/30/EU Directive | |
| Degree of protection | IP20 | |
Electrical diagrams of the connections
Dimension (mm)
