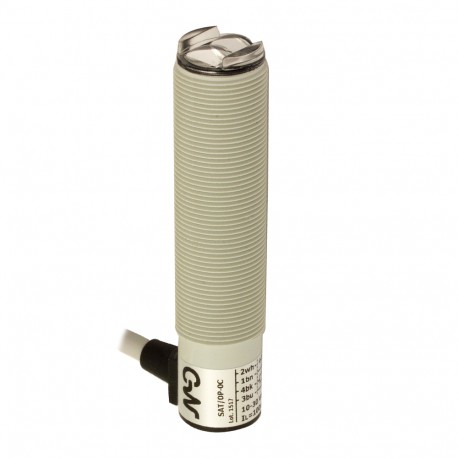

SAT/0P-0C MICRO DETECTORS Photoelectric sensor diffuse focallization PNP plastic cable 2m 90°

Reference: SAT/0P-0C

Manufacturer: MICRO DETECTORS

Description:

Photoelectric sensor diffuse focallization PNP plastic cable 2m 90°
SAT/0P-0C Photoelectric sensor Diffuse Focalizz. PNP plast. cable 2m 90°

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 89,21 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance12mm
Thermal drift of Sr10% Sr
Repeat Accuracy5%
Sensitivity adjustmentTrimmer

Application

Function PrincipleFixed-focus
Optic positionAxial

Outputs

Output typePNP
Output FunctionLO/DO selectable
Switching frequency1kHz

Electrical data

Operating Voltage10-30Vdc
No-Load supply current≤30mA
Load current≤100mA
Leakage current≤10µA
Output voltage drop≤2V IL=100mA
Max ripple content≤ 10%
LED indicatorsYellow (output energized), green (supply), red (activated output)
Time delay before availability200ms
Short-circuit protectionYes
Reverse Polarity ProtectionYes
EmissionRed
Interference to external light3.000lux (incandescent lamp), 10.000lux (sunlight)

Mechanical data

Dimensions21,4mmx89,8mm
Weight75g
Housing MaterialPBT
ConnectionsRight angle cable 2m PVC
Active Head MaterialPMMA
Tightening torque1Nm
Operating temperature- 25°C…+ 70° C (without freeze)

Test/Approvals

ApprovalsCE
EMC compatibilityEN 60947-5-7
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP67

Accessories

Supplied AccessoriesMetallic nut (2x)

Electrical diagrams of the connections


Dimension (mm)



Response curves

Dimensione Spot con STF-12


Dimensione Spot con STF-25


Dimensione Spot con STF-50


Disassamento Parallelo con STF-12


Disassamento Parallelo con STF-25


Disassamento Parallelo con STF-50


Eccesso di Guadagno con STF-12


Eccesso di Guadagno con STF-25


Eccesso di Guadagno con STF-50
