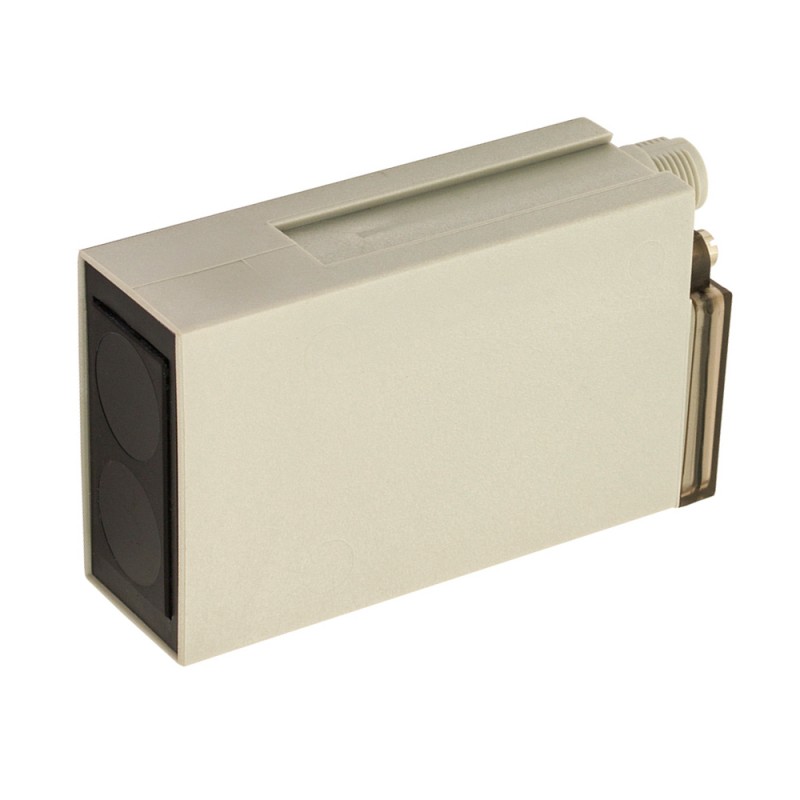

RXC/00-1A MICRO DETECTORS Photoelectric sensor Retroreflective 12 m DECOUT without fixing slide plug M12
RXC/00-1A
MICRO DETECTORS
Photoelectric sensor Retroreflective 12 m DECOUT without fixing slide plug M12
RXC/00-1A Photoelectric sensor Retroreflective 12 m DECOUT without fixing slide conn. M12
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 12m with standard reflector Ø80mm (RL110 supplied separately) | |
| Thermal drift of Sr | 10% Sr | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Single-turn potentiometer | |
Application
| Function Principle | Retro-reflective | |
| Optic position | Axial | |
Outputs
| Output type | DECOUT ( NPN, PNP) | |
| Switching frequency | 500Hz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | 25mA | |
| Load current | ≤ 100mA | |
| Leakage current | ≤ 10μA | |
| Output voltage drop | ≤ 1,2V | |
| Max ripple content | ≤ 10% | |
| LED indicators | Rear red (output state), superior red ( alignment), green ( stable signal) | |
| Time delay before availability | 100ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Infrared (880nm) | |
| Interference to external light | ≥ 10000lux (incandescent lamp) | |
Mechanical data
| Dimensions | 26x86,6x50 | |
| Weight | 75g | |
| Connections | M12 plug | |
| Operating temperature | - 25°C…+ 70°C ( without freeze) | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-28 | |
| Degree of protection | IP65 | |
Accessories
| Supplied Accessories | ST80 mounting bracket and screws | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
