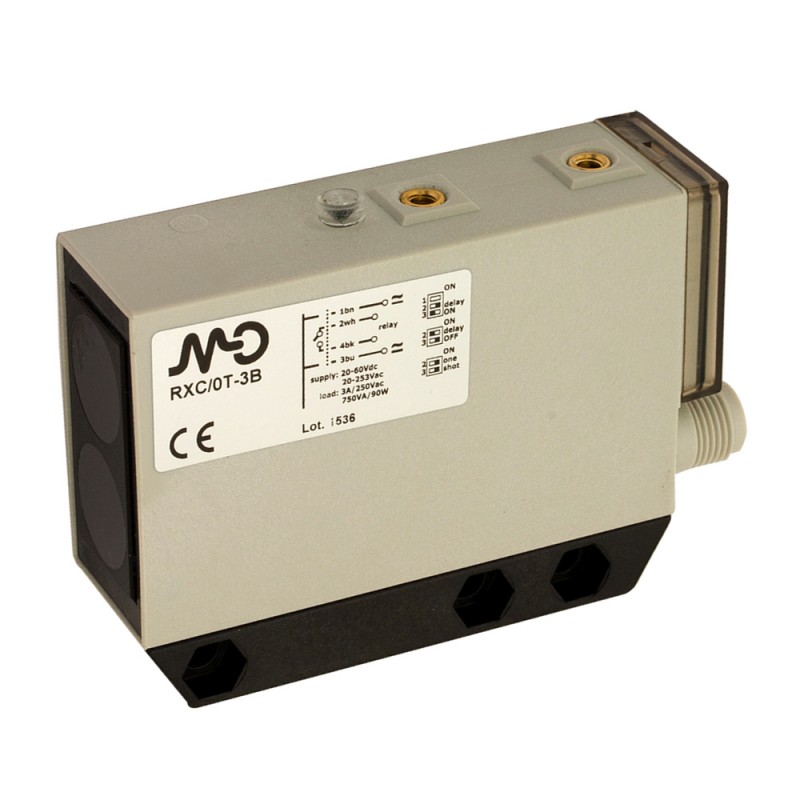

RX8/0T-3B37 MICRO DETECTORS Photoelectric sensor diffuse 4500 mm AC. Relay with fixing slide with timer plug..
RX8/0T-3B37
MICRO DETECTORS
Photoelectric sensor diffuse 4500 mm AC. Relay with fixing slide with timer plug M12
RX8/0T-3B37 Photoelectric sensor Diffuse 4500 mm AC. Relay with fixing slide with timer conn. M12
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 4,5m with white matt paper EG=1,5 | |
| Thermal drift of Sr | 10% Sr | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Single-turn potentiometer | |
Application
| Function Principle | Diffuse reflection | |
| Optic position | Axial | |
Outputs
| Output type | Relay | |
| Switching frequency | 25Hz | |
Electrical data
| Operating Voltage | 20-253Vac/ 20-60Hz | |
| No-Load supply current | 25mARMS | |
| Load current | 3A-250Vac/3A-30Vdc (750VA/90W) | |
| LED indicators | Rear red (output state), superior red ( alignment), green ( stable signal) | |
| Time delay before availability | 100ms | |
| Reverse Polarity Protection | Yes | |
| Emission | Infrared (880nm) | |
| Interference to external light | ≥ 5000lux (incandescent lamp) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 26x86,6x61 | |
| Weight | 90g | |
| Connections | M12 plug | |
| Operating temperature | - 25°C…+ 70°C ( without freeze) | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-28 | |
| Degree of protection | IP65 | |
Accessories
| Supplied Accessories | ST81 mounting bracket and screws | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
