MICRO DETECTORSEncodersRX8/00-3A MICRO DETECTORS Photoelectric sensor diffuse 2000 mm AC. Relay without fixing slide plug M12

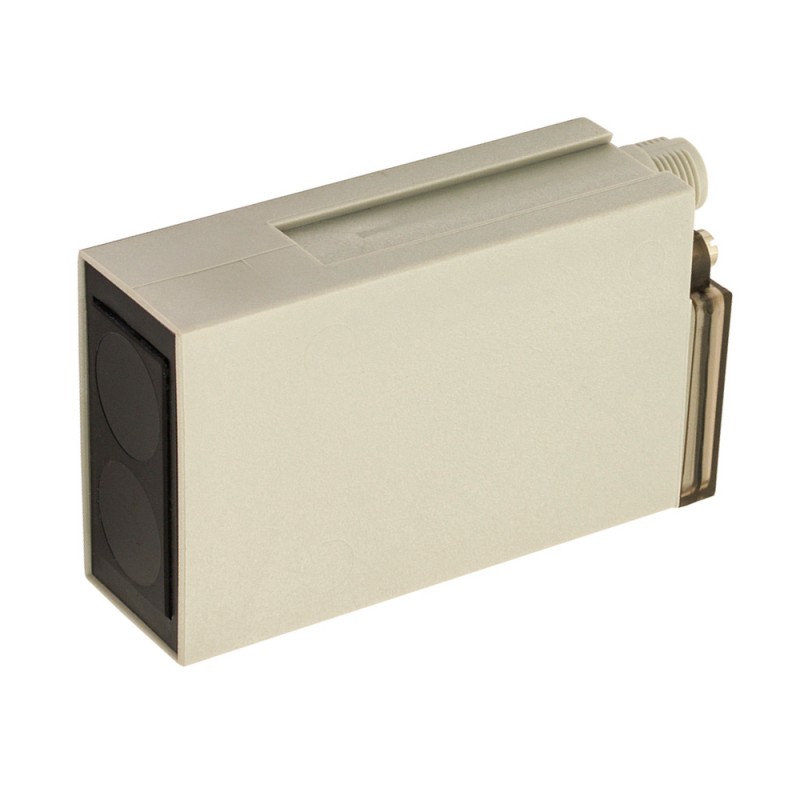

MICRO DETECTORS RX8/00-3A RX8/00-3A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

RX8/00-3A MICRO DETECTORS Photoelectric sensor diffuse 2000 mm AC. Relay without fixing slide plug M12

Reference: RX8/00-3A

Manufacturer: MICRO DETECTORS

Description:

Photoelectric sensor diffuse 2000 mm AC. Relay without fixing slide plug M12
RX8/00-3A Photoelectric sensor Diffuse 2000 mm AC. Relay without fixing slide conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 93,31 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance2m with white matt paper EG=1,5
Thermal drift of Sr10% Sr
Repeat Accuracy5%
Sensitivity adjustmentSingle-turn potentiometer

Application

Function PrincipleDiffuse reflection
Optic positionAxial

Outputs

Output typeRelay
Switching frequency25Hz

Electrical data

Operating Voltage20-253Vac/ 20-60Hz
No-Load supply current25mARMS
Load current3A-250Vac/3A-30Vdc (750VA/90W)
LED indicatorsRear red (output state), superior red ( alignment), green ( stable signal)
Time delay before availability100ms
Reverse Polarity ProtectionYes
EmissionInfrared (880nm)
Interference to external light≥ 5000lux (incandescent lamp)
Impulsive Overvoltage ProtectionYes

Mechanical data

Dimensions26x86,6x50
Weight75g
ConnectionsM12 plug
Operating temperature- 25°C…+ 70°C ( without freeze)

Test/Approvals

ApprovalsCE
EMC compatibilityEN 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-28
Degree of protectionIP65

Accessories

Supplied AccessoriesST80 mounting bracket and screws

Electrical diagrams of the connections


Connector


Dimension (mm)



Response curves

Dimensione Spot


Disassamento Parallelo


Eccesso di Guadagno


DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
