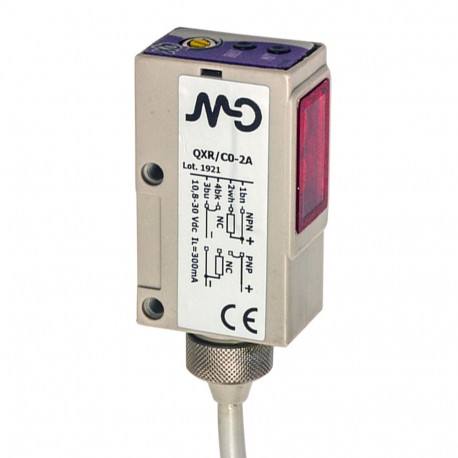

QXR/A0-2A MICRO DETECTORS Photoelectric sensor Receiver 90° optic cable 2m
QXR/A0-2A
MICRO DETECTORS
Photoelectric sensor Receiver 90° optic cable 2m
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Often bought together
▲Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 8m | |
| Repeat Accuracy | ≤ 5% | |
| Sensitivity adjustment | 1 turn trimmer | |
Application
| Function Principle | Through-beam | |
| Optic position | Right angle | |
Outputs
| Output type | PNP/NPN | |
| Output Function | NO | |
| Switching frequency | 500Hz | |
Electrical data
| Operating Voltage | 10,8-30Vdc | |
| No-Load supply current | 5mA max | |
| Load current | ≤ 300mA | |
| Leakage current | ≤ 100μA @ 30Vdc | |
| Output voltage drop | 1,2V max | |
| Max ripple content | ≤ 10% | |
| Time delay before availability | 200ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Red (660nm) | |
| Interference to external light | 3000lux Incandescent Lamp, 10000lux | |
Mechanical data
| Dimensions | 15x23x79 | |
| Weight | 70g | |
| Connections | 2m PVC cable | |
| Active Head Material | Acrylic | |
| Operating temperature | - 25°C…+ 70°C ( without freeze) | |
| Material | ABS | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-28 | |
| Degree of protection | IP65 | |
Accessories
| Supplied Accessories | ST70 mounting brakets and screws | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
