QXC/A0-1F
MICRO DETECTORS
1

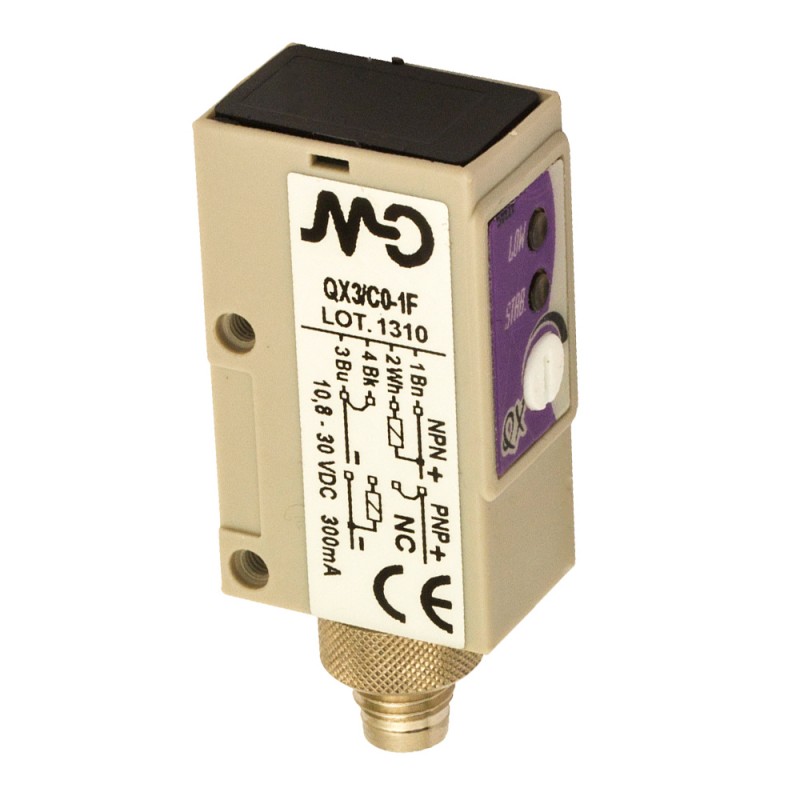

Photoelectric sensor Retroreflective 4 m axial optic plug M8
QXC/A0-1F Photoelectric sensor Retroreflective 4 m axial optic conn. M8
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | 5m | |
Repeat Accuracy | ≤ 5% | |
Sensitivity adjustment | 1 turn trimmer |
Function Principle | Retro-reflective | |
Optic position | Axial |
Output type | PNP/NPN | |
Output Function | NO | |
Switching frequency | 750Hz |
Operating Voltage | 10,8-30Vdc | |
No-Load supply current | 20mA max | |
Load current | ≤ 300mA | |
Leakage current | ≤ 100μA @ 30Vdc | |
Output voltage drop | 1,2V max | |
Max ripple content | ≤ 10% | |
Time delay before availability | 200ms | |
Short-circuit protection | Yes | |
Reverse Polarity Protection | Yes | |
Emission | Red (660nm) | |
Interference to external light | 3000lux Incandescent Lamp, 10000lux |
Dimensions | 15x23x54 | |
Weight | 70g | |
Connections | M8 plug | |
Active Head Material | Acrylic | |
Operating temperature | - 25°C…+ 70°C ( without freeze) | |
Material | ABS |
Approvals | CE | |
EMC compatibility | EN 60947-5-2 | |
Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-28 | |
Degree of protection | IP65 |
Supplied Accessories | ST70 mounting brakets and screws |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes | |
Download general catalog |
