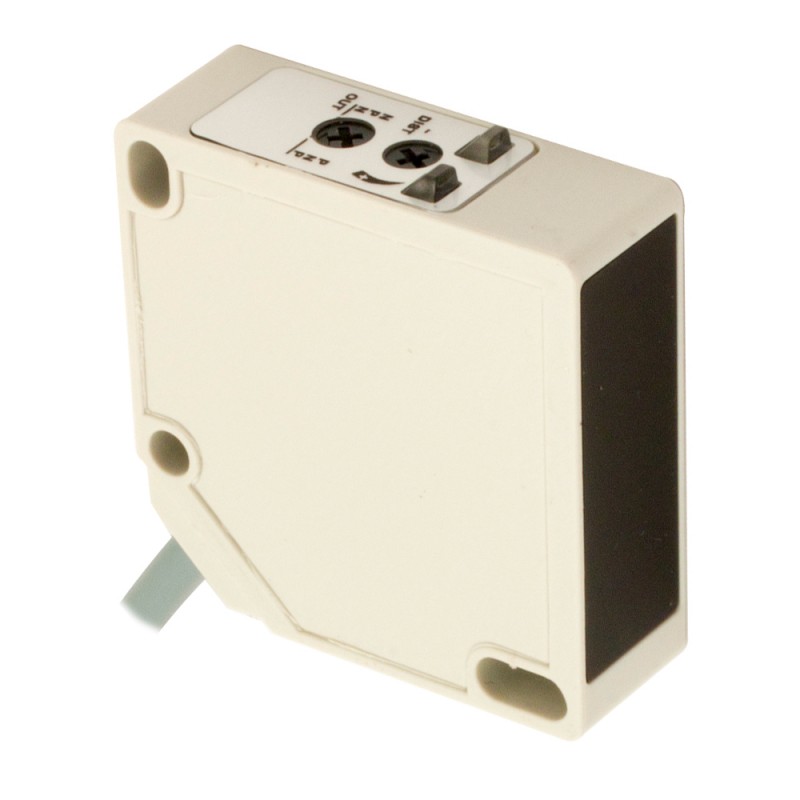

QMR8/0N-0AVE80 MICRO DETECTORS Photoelectric sensor Miniature cubic photoelectric diffuse, adjustment 1000 m..
QMR8/0N-0AVE80
MICRO DETECTORS
Photoelectric sensor Miniature cubic photoelectric diffuse, adjustment 1000 mm NPN L/D cable 200mm with plug M12
QMR8/0N-0AVE80 Photoelectric sensor Miniature cubic photoelectric Diffuse adj. 1000 mm NPN L/D cable 200mm with plug M12
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 0.1…1m | |
| Sensitivity adjustment | Single-turn potentiometer | |
Application
| Function Principle | Diffuse reflection | |
| Optic position | Axial | |
Outputs
| Output type | Relay SPDT electrically isolated | |
| Switching frequency | 20Hz | |
Electrical data
| Operating Voltage | 12-240Vdc/ 24-240Vac/50-60Hz | |
| No-Load supply current | 2,5VA ( relay ON) | |
| Time delay before availability | ≤ 30ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Infrared | |
Mechanical data
| Dimensions | 50X50mm | |
| Weight | 200g | |
| Connections | 2m PVC cable | |
| Active Head Material | PMMA | |
| Operating temperature | - 20°C…+ 60°C ( UL omologation 0°C…60°C) | |
| Material | PC/ABS | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-50 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | Mounting bracket included | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Disassamento Parallelo
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
