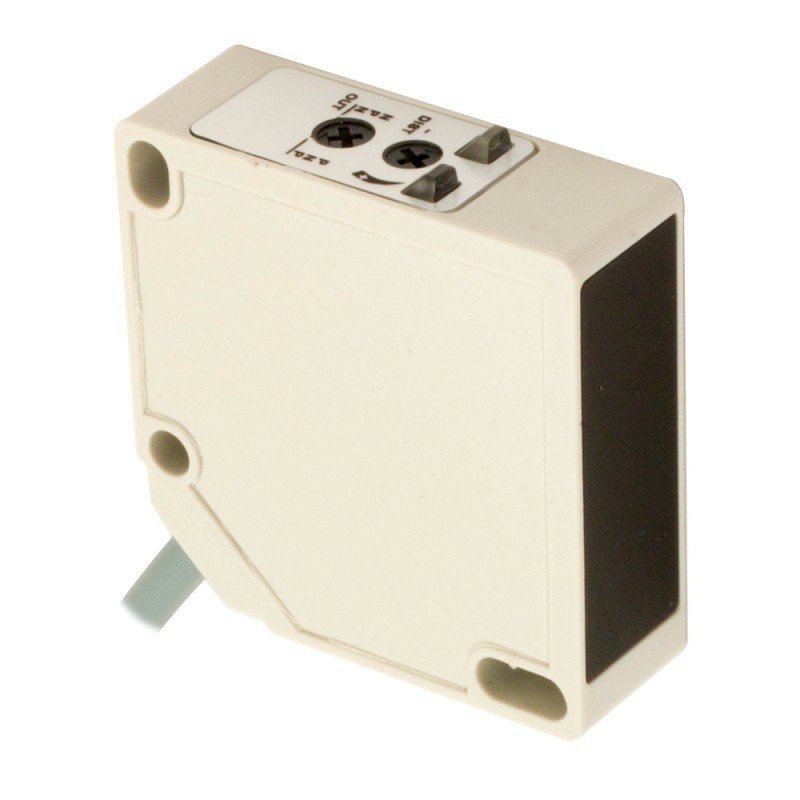

Q50ID/B0-0A MICRO DETECTORS Photoelectric sensor Receiver 20m NPN/PNP NO+NC cable 2m
Q50ID/B0-0A
MICRO DETECTORS
Photoelectric sensor Receiver 20m NPN/PNP NO+NC cable 2m
Q50ID/B0-0A Photoelectric sensor Receiver 20m NPN/PNP NO+NC cable 2m
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 20m | |
| Sensitivity adjustment | Single-turn potentiometer | |
Application
| Function Principle | Through beam | |
| Optic position | Axial | |
Outputs
| Output type | PNP or NPN | |
| Output Function | NO+NC complementary | |
| Switching frequency | 500Hz | |
Electrical data
| No-Load supply current | ≤ 40mA | |
| Load current | ≤ 200mA | |
| Output voltage drop | ≤ 2,5 Vdc @ 200mA | |
| Max ripple content | 10% | |
| Time delay before availability | ≤ 1ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
Mechanical data
| Dimensions | 50X50mm | |
| Weight | 200g | |
| Connections | 2m PVC cable | |
| Active Head Material | PMMA | |
| Operating temperature | - 20°C…+ 60°C ( UL omologation 0°C…60°C) | |
| Material | PC/ABS | |
Test/Approvals
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-57 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | Mounting bracket included | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Disassamento Parallelo
Datasheet - PDF
