MICRO DETECTORSEncodersQ50I6/B0-0A MICRO DETECTORS Photoelectric sensor diffuse 1m NPN/PNP NO+NC cable 2m

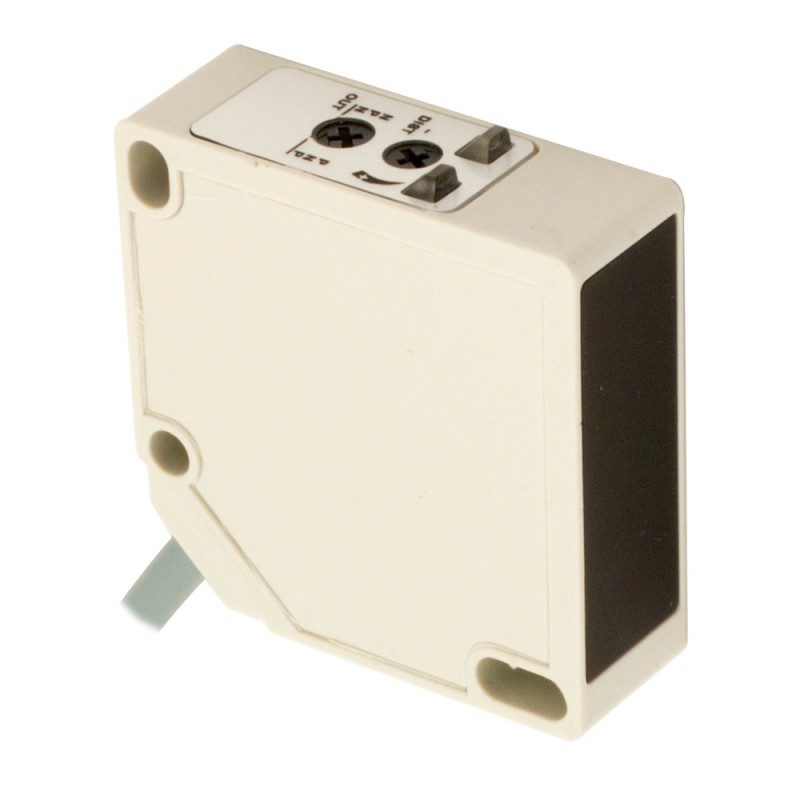

MICRO DETECTORS Q50I6/B0-0A Q50I6/B0-0A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

Q50I6/B0-0A MICRO DETECTORS Photoelectric sensor diffuse 1m NPN/PNP NO+NC cable 2m

Reference: Q50I6/B0-0A

Manufacturer: MICRO DETECTORS

Description:

Photoelectric sensor diffuse 1m NPN/PNP NO+NC cable 2m
Q50I6/B0-0A Photoelectric sensor Diffuse 1m NPN/PNP NO+NC cable 2m

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 65,57 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 6-8 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distance0.1…1m
Sensitivity adjustmentSingle-turn potentiometer

Application

Function PrincipleDiffuse reflection
Optic positionAxial

Outputs

Output typePNP or NPN
Output FunctionNO+NC complementary
Switching frequency500Hz

Electrical data

Operating Voltage10-30Vdc
No-Load supply current≤ 40mA
Load current≤ 200mA
Output voltage drop≤ 2,5 Vdc @ 200mA
Max ripple content10%
Short-circuit protectionYes
Reverse Polarity ProtectionYes
EmissionInfrared

Mechanical data

Dimensions50X50mm
Weight200g
Connections2m PVC cable
Active Head MaterialPMMA
Operating temperature- 20°C…+ 60°C ( UL omologation 0°C…60°C)
MaterialPC/ABS

Test/Approvals

EMC compatibilityEN 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-51
Degree of protectionIP67

Accessories

Supplied AccessoriesMounting bracket included

Electrical diagrams of the connections


Dimension (mm)



Response curves

Disassamento Parallelo


DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
