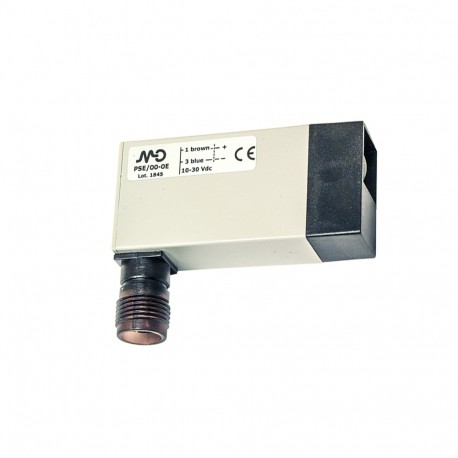

PSE/00-0E MICRO DETECTORS Photoelectric sensor Emitter 4 m M12 plug M12
Reference: PSE/00-0E
Manufacturer: MICRO DETECTORS
Description:
Photoelectric sensor Emitter 4 m M12 plug M12
Categories:
- MICRO DETECTORS > Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Technical features
| Nominal sensing distance | 4m | |
| Thermal drift of Sr | ≤ 10% Sr | |
| Repeat Accuracy | ≤ 5% | |
| Sensitivity adjustment | 1 turn trimmer | |
Application
| Function Principle | Through-beam | |
| Optic position | Axial | |
Outputs
| Switching frequency | 25Hz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | 25mA max | |
| Load current | ≤ 100mA | |
| Leakage current | ≤ 10μA @ Vmax | |
| Output voltage drop | 1,2V max | |
| Max ripple content | ≤ 10% | |
| LED indicators | Red (output energized) | |
| Time delay before availability | 200ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | infrared (880nm) | |
| Interference to external light | 3000lux Incandescent Lamp, 10000lux | |
Mechanical data
| Dimensions | 15x54,5X26mm | |
| Weight | 90g | |
| Connections | Right angle M12 plastic plug cable | |
| Active Head Material | PMMA | |
| Operating temperature | - 25°C…+ 70°C ( without freeze) | |
| Material | Housing ABS; Optic PMMA | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP65 | |
Accessories
| Supplied Accessories | ST07 mounting bracket and screws | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
DATASHEET - PDF
