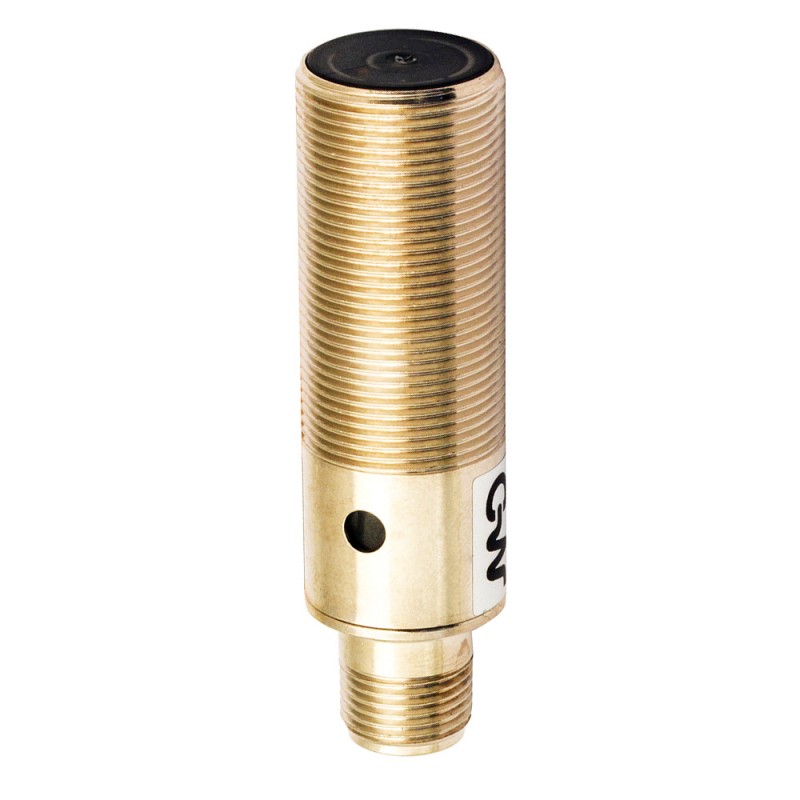

PKS/0P-1H MICRO DETECTORS Inductive sensor M18 shielded PNP plug M12
PKS/0P-1H
MICRO DETECTORS
Inductive sensor M18 shielded PNP plug M12
PKS/0P-1H Inductive sensor M18 shielded PNP conn. M12
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 5mm | |
| Operanting distance | 0…4,05mm | |
| Standard target | 18x18mm FE360 | |
| Correction Factor | copper: 0,3 / aluminium: 0,35 / brass: 0,65 / stainless steel: 0,76 | |
| Thermal drift of Sr | < 10% | |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 … 20% | |
Outputs
| Output type | PNP | |
| Output Function | NO + NC | |
| Switching frequency | 1,5kHz | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | ≤ 15mA | |
| Load current | ≤ 400mA | |
| Leakage current | ≤ 10μA | |
| Output voltage drop | ≤ 2V @200mA | |
| Max ripple content | ≤10% | |
| LED indicators | Yellow LED output state | |
| Time delay before availability | 50ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
Mechanical data
| Dimensions | M18 x 1 / L =62,8mm | |
| Mounting | Shielded | |
| Weight | 50g | |
| Housing Material | Nickel-plated brass | |
| Connections | M12 Plug | |
| Active Head Material | PPS | |
| Tightening torque | 50Nm | |
| Operating temperature | -25°C…+70°C | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) | |
Accessories
| Supplied Accessories | 2 nuts M18x1 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Installation
Response curves
Disassamento Parallelo
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
